IMSA-13065B-2-08Y901

Active

IRISO USA Inc.

HEADER SMT RA 8POS KEY-B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13065B-2-08Y901

Active

IRISO USA Inc.

HEADER SMT RA 8POS KEY-B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.26
		10	$ 1.06
		100	$ 0.96
	Digi-Reel®	1	$ 1.26
		10	$ 1.06
		100	$ 0.96
	Tape & Reel (TR)	300	$ 0.87
		600	$ 0.78
		900	$ 0.76
		1500	$ 0.65
		3000	$ 0.63
		7500	$ 0.61
		15000	$ 0.56

Description

General part information

IMSA-13065B Series

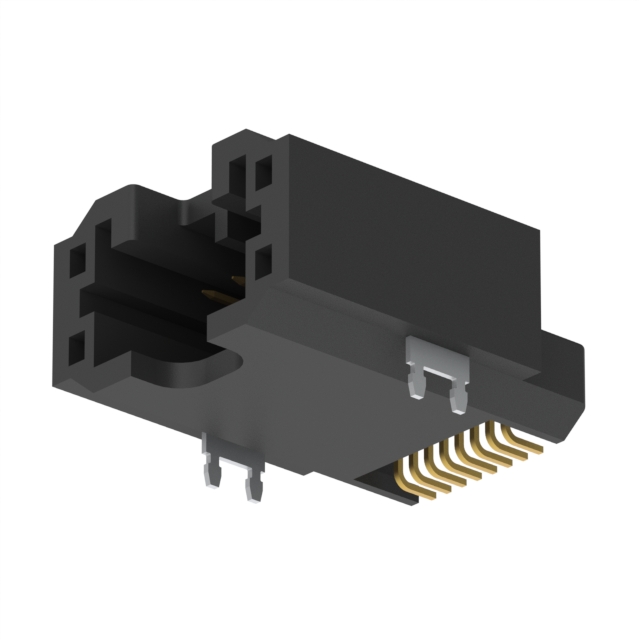

Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Specification	IMSA-13065B-2-08Y901	IMSA-13065B Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Finish Thickness - Post	1 çm	1 çm
Contact Finish Thickness - Post	39.4 çin	39.4 çin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	0.366 in	0.366 in
Insulation Height	9.3 mm	9.3 mm
Insulation Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	8	8 - 40
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.098 in	0.098 in
Row Spacing - Mating	2.5 mm	2.5 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Part

Contact Type

Pitch - Mating [x]

Insulation Height

Material Flammability Rating

Insulation Color

Number of Positions

Contact Shape

Contact Finish Thickness - Mating

Connector Type

Contact Finish - Post

Contact Material

Fastening Type

Contact Finish Thickness - Post

Insulation Material

Style

Row Spacing - Mating

Number of Rows

Features

Number of Positions Loaded

Mounting Type

Termination

Shrouding

Number of Positions

IRISO USA Inc.

IMSA-13065B-2-40Y900

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-12Y901

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-40Y901

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-16K-TR

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-32Y901

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-24K-TR

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-16Y900

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-28Y902

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-24Y901

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

IRISO USA Inc.

IMSA-13065B-2-32Y902

Male Pin

0.079 in

2 mm

0.366 in

9.3 mm

UL94 V-0

Black

Square

1 µm

39.4 µin

Header

Tin

Copper Alloy

Locking Ramp

1 çm

39.4 çin

Polyphenylene Sulfide (PPS)

Board to Board, Cable

0.098 in

2.5 mm

Solder Retention

All

Surface Mount, Right Angle

Solder

Shrouded - 4 Wall

Part	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Number of Positions	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Post	Contact Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Style	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Features	Number of Positions Loaded	Mounting Type	Termination	Shrouding	Number of Positions
IRISO USA Inc. IMSA-13065B-2-40Y900	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black	40	Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-12Y901	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black	12	Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-40Y901	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black	40	Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-16K-TR	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black		Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall	16
IRISO USA Inc. IMSA-13065B-2-32Y901	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black		Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-24K-TR	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black	24	Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-16Y900	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black		Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall	16
IRISO USA Inc. IMSA-13065B-2-28Y902	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black	28	Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-24Y901	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black	24	Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
IRISO USA Inc. IMSA-13065B-2-32Y902	Male Pin	0.079 in	2 mm	0.366 in	9.3 mm	UL94 V-0	Black		Square	1 µm	39.4 µin	Header	Tin	Copper Alloy	Locking Ramp	1 çm	39.4 çin	Polyphenylene Sulfide (PPS)	Board to Board, Cable	0.098 in	2.5 mm	2	Solder Retention	All	Surface Mount, Right Angle	Solder	Shrouded - 4 Wall
