MULP180-1324-2

Active

EOS Power

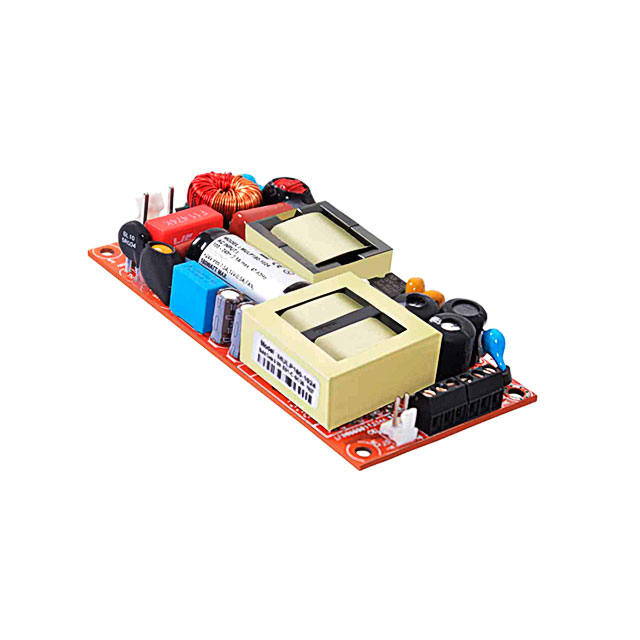

AC/DC CONVERTER 24V 120W

Deep-Dive with AI

Search across all available documentation for this part.

MULP180-1324-2

Active

EOS Power

AC/DC CONVERTER 24V 120W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.90
		5	$ 92.95
		10	$ 90.00
		25	$ 87.05
		72	$ 84.10

Description

General part information

MULP180 Series

Open Frame AC DC Converters 1 Output 24V 80 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available

Specification	MULP180-1324-2	MULP180 Series

Applications	Medical	Medical
Approval Agency	cUL, CE, UL, CB, NEMKO	cUL, CE, UL, CB, NEMKO
Current - Output 1	5 A	2.07 - 10 A
Efficiency	90 %	88 - 92 %
Features	Universal Input, Adjustable Output, PFC, Standby Output	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	120 W, 180 W	120 - 180 W
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	2 in	2 - 2.5 in
Size / Dimension [y]	50.8 mm	50.8 - 63.5 mm
Size / Dimension [z]	19.1 mm	19.1 mm
Size / Dimension [z]	0.75 in	0.75 in
Type	Open Frame	Open Frame
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	24 V	12 - 48 V

Part	Current - Output 1	Approval Agency	Applications	Voltage - Isolation	Mounting Type	Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Efficiency	Type	Voltage - Output 1	Power (Watts)
EOS Power MULP180-0015-2	8 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm	88 %	Open Frame	15 V	120 W, 180 W
EOS Power MULP180-1315-2	8 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm	88 %	Open Frame	15 V	120 W, 180 W
EOS Power MULP180-1030	4 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm	90 %	Open Frame	30 V	120 W, 180 W
EOS Power MULP180-0024	5 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm	90 %	Open Frame	24 V	120 W, 180 W
EOS Power MULP180-1358-2	2.07 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm	92 %	Open Frame		120 W, 180 W
EOS Power MULP180-0012	10 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm	88 %	Open Frame	12 V	120 W, 180 W
EOS Power MULP180-1330	4 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm	90 %	Open Frame	30 V	120 W, 180 W
EOS Power MULP180-0048-2	2.5 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm	92 %	Open Frame	48 V	120 W, 180 W
EOS Power MULP180-0012-2	10 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	63.5 mm	101.6 mm	2.5 in	0.75 in	19.1 mm	88 %	Open Frame	12 V	120 W, 180 W
EOS Power MULP180-1324-2	5 A	CB, CE, cUL, NEMKO, UL	Medical	4000 V	Chassis Mount	Adjustable Output, PFC, Standby Output, Universal Input	1	4 in	50.8 mm	101.6 mm	2 in	0.75 in	19.1 mm	90 %	Open Frame	24 V	120 W, 180 W
