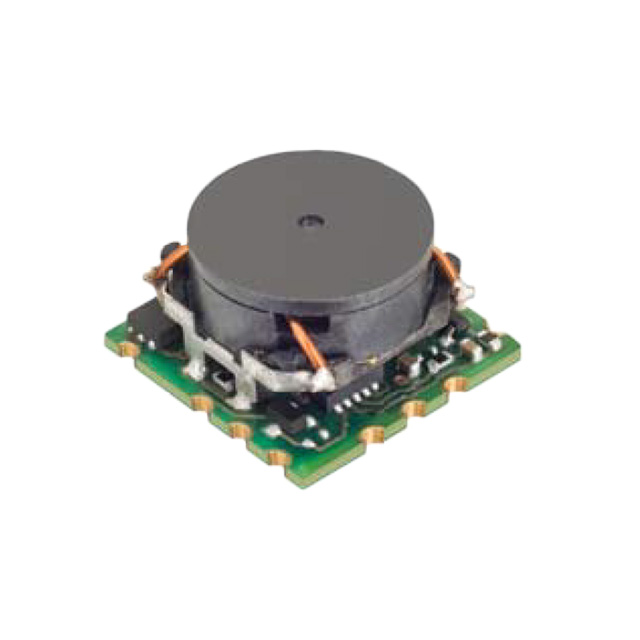

OKL2-T/6-W12N-C
ActiveMurata Power Solutions Inc.
TAPE&REEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OKL2-T/6-W12N-C
ActiveMurata Power Solutions Inc.
TAPE&REEL ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKL2-T/6-W12N-C | OKL2-T Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Control Features | - | Active High, Enable, Active Low |
| Current - Output (Max) | - | 3 - 20 A |
| Efficiency | - | 93 - 95.3 % |
| Features | - | UVLO, Remote On/Off, SCP, OCP, OTP, OVP |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 12-SMD Module, 10-SMD Module |
| Power (Watts) | - | 44 - 110 W |
| Size / Dimension | - | 7.1 - 8.6 mm |
| Size / Dimension | - | 12.2 - 33 mm |
| Size / Dimension | - | 0.24 - 0.34 " |
| Size / Dimension | - | 0.48 - 1.3 in |
| Size / Dimension | - | 11.4 - 13.5 mm |
| Size / Dimension | - | 0.45 - 0.53 in |
| Size / Dimension | - | 12.2 mm |
| Size / Dimension | - | 6.1 mm |
| Type | - | Non-Isolated PoL Module |
| Voltage - Input (Max) | - | 5.5 - 14 V |
| Voltage - Input (Min) | - | 2.4 - 4.5 V |
| Voltage - Output 1 | - | 3.3 - 5.5 V |
| Voltage - Output 1 | - | 0.591 - 0.69 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
OKL2-T Series
TAPE&REEL ROHS COMPLIANT: YES
| Part | Features | Voltage - Input (Max) [Max] | Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Control Features | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Type | Package / Case | Number of Outputs | Efficiency | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKL2-T/6-W12P-C | OCP, Remote On/Off, SCP, UVLO | 14 V | Non-Isolated PoL Module | 5.5 V | 0.591 V | 6 A | 7.1 mm | 12.2 mm | 0.28 " | 0.48 in | 12.2 mm | 0.48 in | Active High, Enable | 4.5 V | 85 °C | -40 °C | ITE (Commercial) | Surface Mount | 12-SMD Module | 1 | 93 % | |||
Murata Power Solutions Inc. OKL2-T/20-W12P2-C | OCP, OTP, Remote On/Off, SCP, UVLO | 14 V | Non-Isolated PoL Module | 5.5 V | 0.69 V | 20 A | 8.6 mm | 33 mm | 0.34 in | 1.3 " | 13.5 mm | 0.53 in | Active High, Enable | 4.5 V | 85 °C | -40 °C | ITE (Commercial) | Surface Mount | 10-SMD Module | 1 | 94 % | 110 W | ||
Murata Power Solutions Inc. OKL2-T/3-W12P-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL2-T/20-W5P-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL2-T/20-W12P2-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL2-T/6-W12N-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL2-T/12-W12P2-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL2-T/12-W5N-C | OCP, OTP, Remote On/Off, SCP, UVLO | 5.5 V | Non-Isolated PoL Module | 3.63 V | 0.6 V | 12 A | 8.5 mm | 20.3 mm | 0.34 in | 0.8 " | 11.4 mm | 0.45 in | Active Low, Enable | 2.4 V | 85 °C | -40 °C | ITE (Commercial) | Surface Mount | 10-SMD Module | 1 | 94 % | 44 W | ||
Murata Power Solutions Inc. OKL2-T/6-W12P-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL2-T/20-W12N2-C | OCP, OTP, Remote On/Off, SCP, UVLO | 14 V | Non-Isolated PoL Module | 5.5 V | 0.69 V | 20 A | 8.6 mm | 33 mm | 0.34 in | 1.3 " | 13.5 mm | 0.53 in | Active Low, Enable | 4.5 V | 85 °C | -40 °C | ITE (Commercial) | Surface Mount | 10-SMD Module | 1 | 94 % | 110 W |
Description
General part information
OKL2-T Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 5.5V 6A 4.5V - 14V Input
