15GENW3EM-R(H)

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	15GENW3EM-R(H)

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A
Current Rating - Filter	15 A
Features	Mounting Clip, Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	21.5 mm
Panel Thickness [Max]	0.063 in
Panel Thickness [Max]	1.6 mm
Panel Thickness [Min]	0.81 mm
Panel Thickness [Min]	0.032 in
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Features	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Mounting Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Current Rating - Appliance Inlet	Current Rating - Filter	Filter Type	Approval Agency	Connector Type	Connector Style
Delta Electronics 15GENW3EM-R(H)	Bleed Resistor Mounting Clip	0.81 mm	0.032 in	0.063 in	1.6 mm	Panel Mount Snap-In	115 VAC	250 VAC	Wire Leads	29.5 mm	21.5 mm		15 A	15 A	Filtered (EMI RFI) - Commercial Medical	CSA UL VDE	Male Blades Receptacle	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

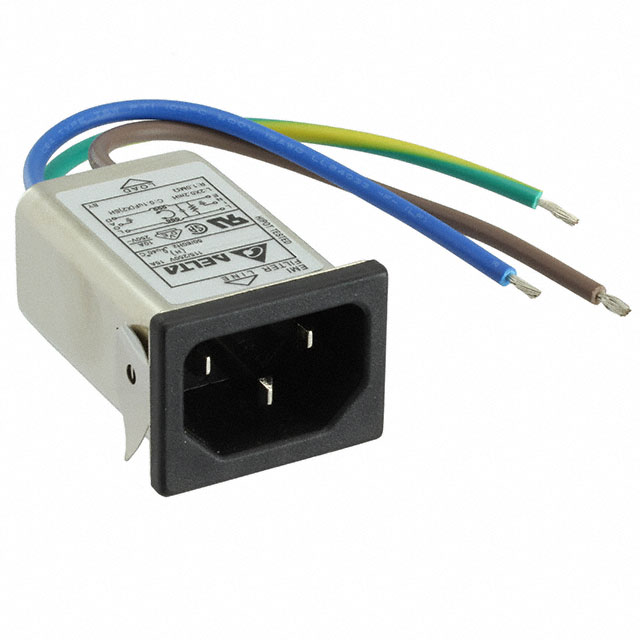

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
