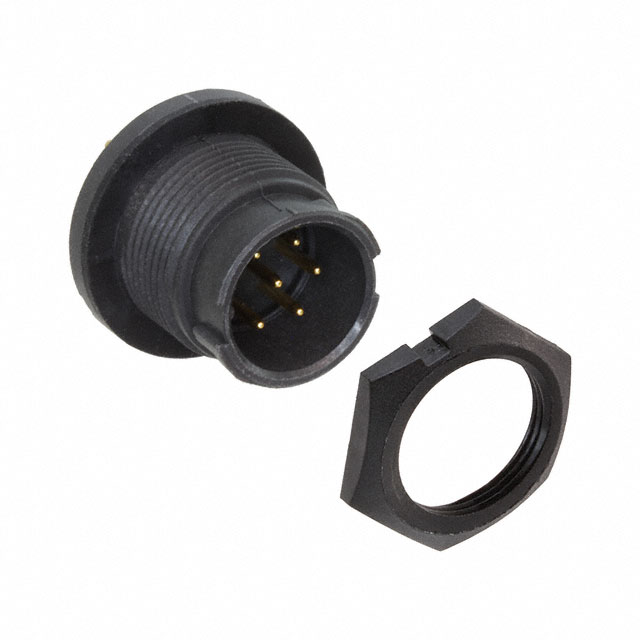

EN3P6MPX
ActiveSwitchcraft Inc.
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P6MPX
ActiveSwitchcraft Inc.
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P6MPX | EN3P6M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 4 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Circuit Board, Solder, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P6M Series
CONN RCPT MALE 6POS GOLD SOLDER
| Part | Orientation | Mounting Type | Number of Positions | Fastening Type | Voltage Rating | Termination | Contact Finish - Mating | Shielding | Contact Material | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Color | Ingress Protection | Material Flammability Rating | Current Rating (Amps) | Insert Material | Connector Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P6MRAPCBW | Keyed | Panel Mount, Right Angle, Through Hole | 6 | Bayonet Lock | 250 VAC | Circuit Board, Solder | Gold | Unshielded | Copper Alloy | Plastic | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Black | IP66/IP68 | UL94 V-0 | 4 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut |
Switchcraft Inc. EN3P6MRAPCBN | Keyed | Panel Mount, Right Angle, Through Hole | 6 | Bayonet Lock | 250 VAC | Circuit Board, Solder | Gold | Unshielded | Copper Alloy | Plastic | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Black | IP66/IP68 | UL94 V-0 | 4 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut |
Switchcraft Inc. EN3P6MPX | Keyed | Panel Mount, Through Hole | 6 | Bayonet Lock | 250 VAC | Solder | Gold | Unshielded | Copper Alloy | Plastic | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Black | IP66/IP68 | UL94 V-0 | 7.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut |
Switchcraft Inc. EN3P6MX | Keyed | 6 | Bayonet Lock | 250 VAC | Gold | Unshielded | Copper Alloy | Plastic | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Black | IP66/IP68 | UL94 V-0 | 7.5 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut | ||
Switchcraft Inc. EN3P6MRAPCX | Keyed | Panel Mount, Right Angle, Through Hole | 6 | Bayonet Lock | 250 VAC | Solder | Gold | Unshielded | Copper Alloy | Plastic | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | Black | IP66/IP68 | UL94 V-0 | 4 A | Elastomer | Male Pins, Receptacle | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EN3P6M Series
6 Position Circular Connector Receptacle, Male Pins Solder
