85875-7
ActiveTE Connectivity AMP Connectors

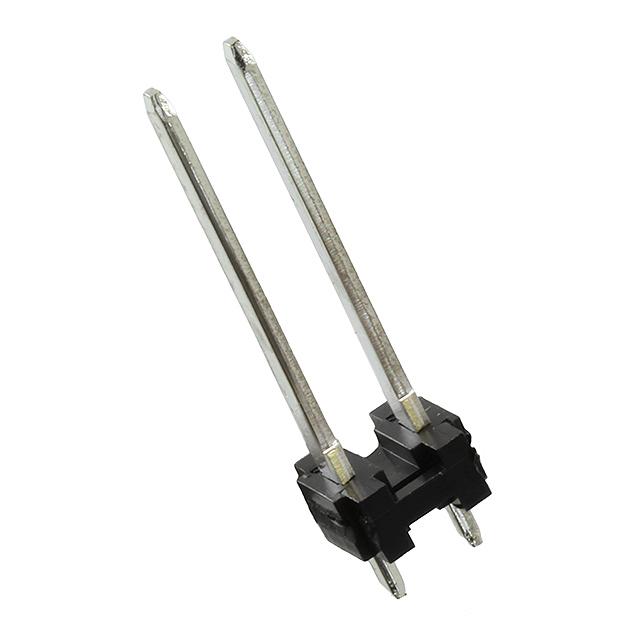

CONN HEADER VERT 2POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
85875-7
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 2POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 85875-7 | 85875 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 0.75 " | 0.75 " |
| Contact Length - Mating | 19.05 mm | 19.05 mm |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Brass | Brass |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.125 in | 0.125 in |
| Insulation Height | 3.18 mm | 3.18 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 2 | 2 - 6 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 1 in | 1 in |
| Overall Contact Length | 25.4 mm | 25.4 mm |
| Pitch - Mating | 0.156 in | 0.156 in |
| Pitch - Mating | 3.96 mm | 3.96 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
85875 Series
CONN HEADER VERT 6POS 3.96MM
| Part | Termination | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Number of Positions | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Mounting Type | Insulation Color | Connector Type | Overall Contact Length | Overall Contact Length | Insulation Material | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post | Style | Current Rating (Amps) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 85875-9 | Solder | 1 | 2.54 çm | 100 çin | Unshrouded | 6 | Rectangular | 3.18 mm | 0.125 in | -65 ░C | 105 ░C | 0.156 in | 3.96 mm | Through Hole | Black | Header | 1 in | 25.4 mm | Thermoplastic | Tin-Lead | 0.75 " | 19.05 mm | Male Pin | 2.54 µm | 100 µin | UL94 V-0 | All | 0.125 in | 3.18 mm | Push-Pull | Tin-Lead | Board to Board, Cable | 5 A | Brass |
TE Connectivity AMP Connectors 85875-7 | Solder | 1 | 2.54 çm | 100 çin | Unshrouded | 2 | Rectangular | 3.18 mm | 0.125 in | -65 ░C | 105 ░C | 0.156 in | 3.96 mm | Through Hole | Black | Header | 1 in | 25.4 mm | Thermoplastic | Tin-Lead | 0.75 " | 19.05 mm | Male Pin | 2.54 µm | 100 µin | UL94 V-0 | All | 0.125 in | 3.18 mm | Push-Pull | Tin-Lead | Board to Board, Cable | 5 A | Brass |
