1-1337446-0

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337446-0

Body Finish	Silver
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

CONN BNC JACK STR 50 OHM SOLDER

Part	Center Contact Plating	Connector Style	Voltage Rating	Body Material	Mounting Feature	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Shield Termination	Number of Ports	Mating Cycles	Housing Color	Frequency - Max [Max]	Body Finish	Fastening Type	Features	Center Contact Material	Dielectric Material	Connector Type
TE Connectivity AMP Connectors 1-1337446-0	Silver	BNC	500 V	Brass	Flange	Solder Cup	85 °C	-40 °C	50 Ohms	Solder	1	500	Silver	2 GHz	Silver	Bayonet Lock	Extended Insulation	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Female Socket, Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

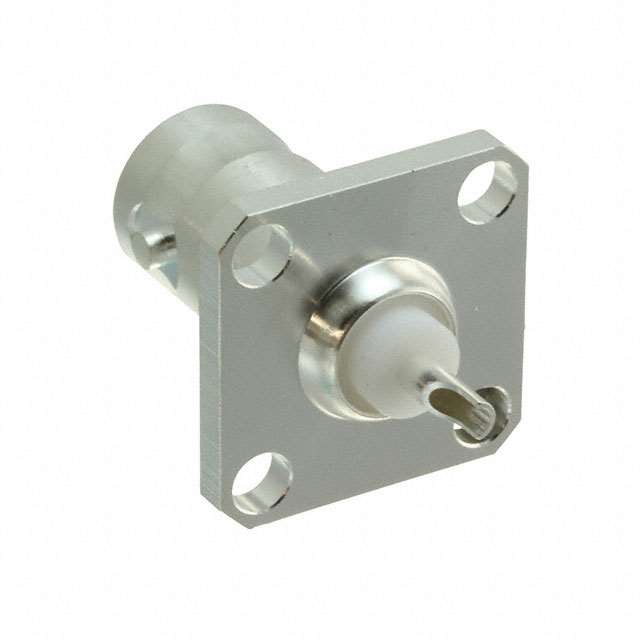

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
