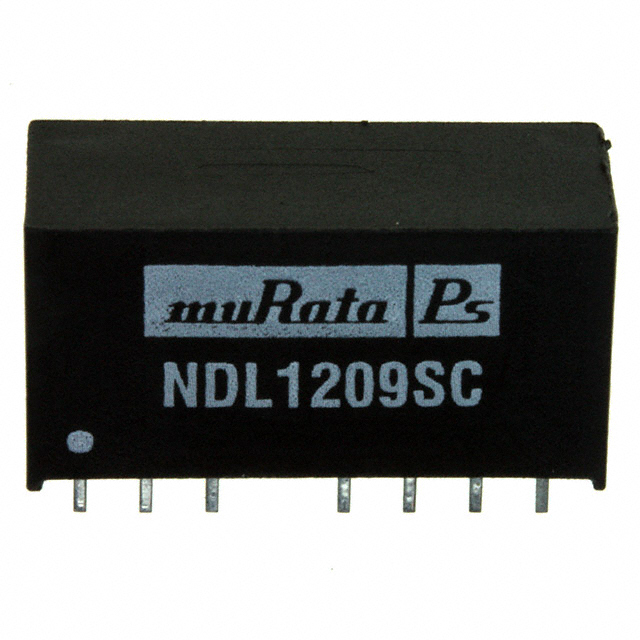

NDL1209SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 9V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDL1209SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 9V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDL1209SC | NDL12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 222 mA | 167 - 222 mA |
| Efficiency | 79 % | 79 - 80 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-SIP Module | 8-SIP Module |
| Package / Case | 7 Leads | 7 Leads |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 0.86 in | 0.86 in |
| Size / Dimension [x] | 21.8 mm | 21.8 mm |
| Size / Dimension [y] | 0.36 " | 0.36 " |
| Size / Dimension [y] | 9.1 mm | 9.1 mm |
| Size / Dimension [z] | 11.2 mm | 11.2 mm |
| Size / Dimension [z] | 0.44 " | 0.44 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V | 18 V |
| Voltage - Input (Min) [Min] | 9 V | 9 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 9 V | 9 - 12 V |
NDL12 Series
DC DC CONVERTER 9V 2W
| Part | Voltage - Input (Min) [Min] | Voltage - Output 1 | Applications | Mounting Type | Voltage - Input (Max) [Max] | Type | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Number of Outputs | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Isolation | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDL1209SC | 9 V | 9 V | ITE (Commercial) | Through Hole | 18 V | Isolated Module | 222 mA | 85 °C | -40 °C | 8-SIP Module | 7 Leads | 1 | 79 % | 0.86 in | 21.8 mm | 11.2 mm | 0.44 " | 0.36 " | 9.1 mm | 1000 V | 2 W |
Murata Power Solutions Inc. NDL1212SC | 9 V | 12 V | ITE (Commercial) | Through Hole | 18 V | Isolated Module | 167 mA | 85 °C | -40 °C | 8-SIP Module | 7 Leads | 1 | 80 % | 0.86 in | 21.8 mm | 11.2 mm | 0.44 " | 0.36 " | 9.1 mm | 1000 V | 2 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NDL12 Series
Isolated Module DC DC Converter 1 Output 9V 222mA 9V - 18V Input
