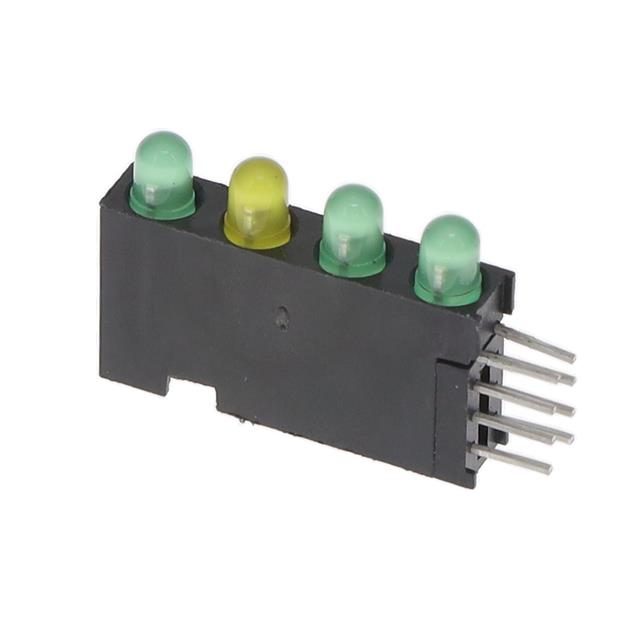

LED CBI 3MM QUAD GRN/YELLOW RA

Find alt

Alpha

5680102322F

Active

DIALIGHT

LED CBI 3MM QUAD GRN/YELLOW RA

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5680102 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 High Green (x 3), Yellow (x 1) 2.1V Green, 2.1V Yellow 30mA Green, 20mA Yellow Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	5680102322F

Color	Green, Yellow
Color Count	1 count, 3 count
Configuration	High
Configuration Count	4
Current (Green)	30 mA
Current (Yellow)	20 mA
Current Colors	Green, Yellow
Lens Size	3 mm
Lens Size (Code)	T-1
Lens Style	Round, Domed Top
Millicandela Rating (Green)	12.6 mcd
Millicandela Rating (Yellow)	10 mcd
Millicandela Rating Colors	Yellow, Green
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating - Color	Yellow, Green
Voltage Rating (Green)	2.1 V
Voltage Rating (Yellow)	2.1 V
Wavelength - Peak (1)	565 nm
Wavelength - Peak (2)	585 nm

5680102 Series

Part	Voltage Rating (Green)	Voltage Rating - Color	Voltage Rating (Red)	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Wavelength - Peak (1)	Wavelength - Peak (2)	Lens Size	Lens Size (Code)	Current	Viewing Angle	Mounting Type	Color	Color Count	Configuration Count	Configuration	Lens Style	Wavelength - Peak	Lens Diameter	Millicandela Rating	Voltage Rating	Voltage Rating (Yellow)	Current (Green)	Current Colors	Current (Yellow)	Millicandela Rating (Yellow)	Current (Red)	Current (Orange)	Millicandela Rating ({{color}})	Millicandela Rating (Orange)	Voltage Rating (Orange)	Wavelength - Peak (3)
DIALIGHT 5680102212F	2.1 V	Green Red	2 V	Green Red	12.6 mcd	10 mcd	565 nm	635 nm	3 mm	T-1	10 mA	60 °	Right Angle Through Hole	Green Red	1 count 3 count	4	High	Domed Top Round
DIALIGHT 5680102200F											30 mA	60 °	Right Angle Through Hole	Blank Green	2 count 2 count	4	High	Domed Top Round	565 nm	3 mm	12.6 mcd	2.1 V
DIALIGHT 5680102020F											30 mA	60 °	Right Angle Through Hole	Blank Green	2 count 2 count	4	High	Domed Top Round	565 nm	3 mm	12.6 mcd	2.1 V
DIALIGHT 5680102232F	2.1 V	Green Yellow		Green Yellow	12.6 mcd		565 nm	585 nm				60 °	Right Angle Through Hole	Green Yellow	1 count 3 count	4	High	Domed Top Round		3 mm			2.1 V	30 mA	Green Yellow	20 mA	10 mcd
DIALIGHT 5680102806F									3 mm	T-1			Right Angle Through Hole					Domed Top Round
DIALIGHT 5680102201F	2.1 V	Green Red	2 V	Green Red	12.6 mcd	10 mcd	565 nm	635 nm				60 °	Right Angle Through Hole	Blank Green Red	1 count 1 count 2 count	4	High	Domed Top Round		3 mm				30 mA	Green Red			30 mA
DIALIGHT 5680102102F	2.1 V	Green Red	2 V	Green Red	12.6 mcd	10 mcd	565 nm	635 nm	3 mm	T-1		60 °	Right Angle Through Hole	Blank Green Red	1 count 1 count 2 count	4	High	Domed Top Round						30 mA	Green Red			30 mA
DIALIGHT 5680102227F	2.1 V	Green Orange		Green Orange	12.6 mcd		565 nm	600 nm				60 °	Right Angle Through Hole	Green Orange	1 count 3 count	4	High	Domed Top Round		3 mm				30 mA	Green Orange				25 mA	7 mcd 12.6 mcd	7 mcd	2.2 V
DIALIGHT 5680102073F	2.1 V	Green Orange Yellow		Green Orange Yellow	12.6 mcd		565 nm	600 nm				60 °	Right Angle Through Hole	Blank Green Orange Yellow	1 count 1 count 1 count 1 count	4	High	Domed Top Round		3 mm			2.1 V	30 mA	Green Orange Yellow	20 mA	10 mcd					2.2 V	585 nm
DIALIGHT 5680102223F	2.1 V	Green Yellow		Green Yellow	12.6 mcd		565 nm	585 nm				60 °	Right Angle Through Hole	Green Yellow	1 count 3 count	4	High	Domed Top Round		3 mm			2.1 V	30 mA	Green Yellow	20 mA	10 mcd
