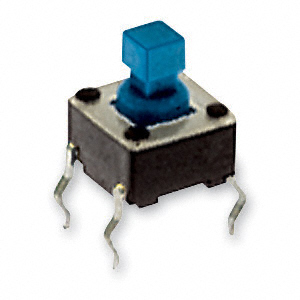

Specification	TL1105TF100Q

Actuator Height off PCB (Vertical)	7.5 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Through Hole
Operating Force	0.1 kgf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Length	6 mm
Outline Width	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TL1105 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Orientation	Actuator Type	Contact Rating (Current)	Switch Function	Termination Style	Circuit	Outline Length	Outline Width	Illumination	Mounting Type	Actuator Length (Right Angle)	Operating Force	Mechanical Life (Cycles)	Actuator Material	Switch Travel	Actuator Height off PCB (Vertical)
E-Switch TL1105RF250Q	70 °C	-20 °C	Side Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	7.1 mm	6.55 mm	Non-Illuminated	Right Angle Through Hole	6.15 mm	0.25 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm
E-Switch TL1105KF100Q	70 °C	-20 °C	Top Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	6 mm	6 mm	Non-Illuminated	Through Hole		0.1 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm	13.5 mm
E-Switch TL1105SF160Q	70 °C	-20 °C	Side Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	7.1 mm	6.55 mm	Non-Illuminated	Right Angle Through Hole	8.35 mm	160 gf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm
E-Switch TL1105XF100Q	70 °C	-20 °C	Side Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	7.1 mm	6.55 mm	Non-Illuminated	Right Angle Through Hole	5.85 mm	0.1 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm
E-Switch TL1105AF250Q	70 °C	-20 °C	Top Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	6 mm	6 mm	Non-Illuminated	Through Hole		0.25 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm	5 mm
E-Switch TL1105JAF100Q1RBLK	70 °C	-20 °C	Side Actuated	Round Button	0.05 A	Off-Mom	PC Pin	SPST-NO	7.2 mm	6.5 mm	Non-Illuminated	Right Angle Through Hole	12.45 mm	0.1 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm
E-Switch TL1105DF100Q	70 °C	-20 °C	Top Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	6 mm	6 mm	Non-Illuminated	Through Hole		0.1 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm	13 mm
E-Switch TL1105DF250Q	70 °C	-20 °C	Top Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	6 mm	6 mm	Non-Illuminated	Through Hole		0.25 kgf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm	13 mm
E-Switch TL1105WF160R	70 °C	-20 °C	Side Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	7.1 mm	6.55 mm	Non-Illuminated	Right Angle Through Hole	3.15 mm	160 gf
E-Switch TL1105XF160Q	70 °C	-20 °C	Side Actuated	Standard	0.05 A	Off-Mom	PC Pin	SPST-NO	7.1 mm	6.55 mm	Non-Illuminated	Right Angle Through Hole	5.85 mm	160 gf	100000 Cycles	Nylon Polyamide (PA)	0.25 mm
