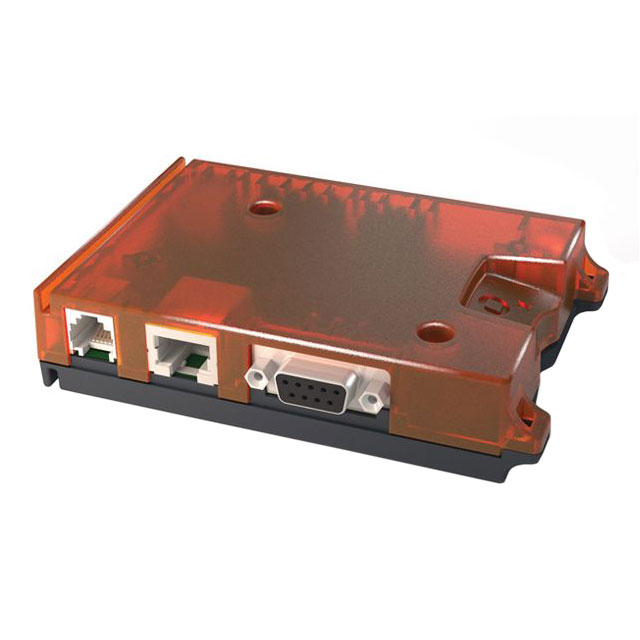

EHS6T LAN

Obsolete

Telit Cinterion

RF TXRX MODULE CELL DIN RAIL

Search across all available documentation for this part.

Obsolete

Telit Cinterion

RF TXRX MODULE CELL DIN RAIL

Technical Specifications

Parameters and characteristics for this part

RF TXRX MODULE CELL DIN RAIL

Part	Package / Case	Antenna Type	Memory Size [custom]	Memory Size [custom]	Data Rate	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Modulation	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Utilized IC / Part	Mounting Type	Protocol
Telit Cinterion EHS6T LAN	Module	Antenna Not Included	10 MB	10 MB	7.2 Mbps	60 mA	530 mA	33 dBm	16-QAM	800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	90 °C	-40 °C	Cellular	57 V	8 V	GPIO, I2C, PCM, PWM, RS232, SPI	Intel XMM 6260	DIN Rail	EDGE, GPRS, GSM, HSPA+, UMTS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular EDGE, GPRS, GSM, HSPA+, UMTS Transceiver Module 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included DIN Rail

Technical documentation and resources

No documents available
