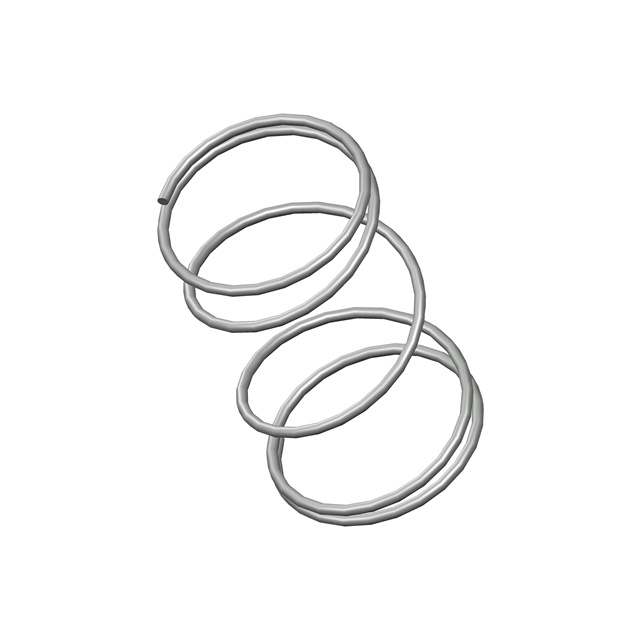

3007CS
ActiveCentury Spring Corp
COMP O=1.062,L= 1.84,W= .054
3007CS
ActiveCentury Spring Corp
COMP O=1.062,L= 1.84,W= .054
Description
General part information
3007CS
COMP O=1.062,L= 1.84,W= .054
Technical Specifications
Parameters and characteristics for this part
| Specification | 3007CS |
|---|---|
| Diameter - Inside | 0.954 in |
| Diameter - Outside | 1.062 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.84 in |
| Material | Spring Steel |
| Rate (lbs/in) | 4 lbs/in |
| Type | Compression |
| Wire Diameter | 0.054 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
