7-967570-4
ActiveTE Connectivity AMP Connectors

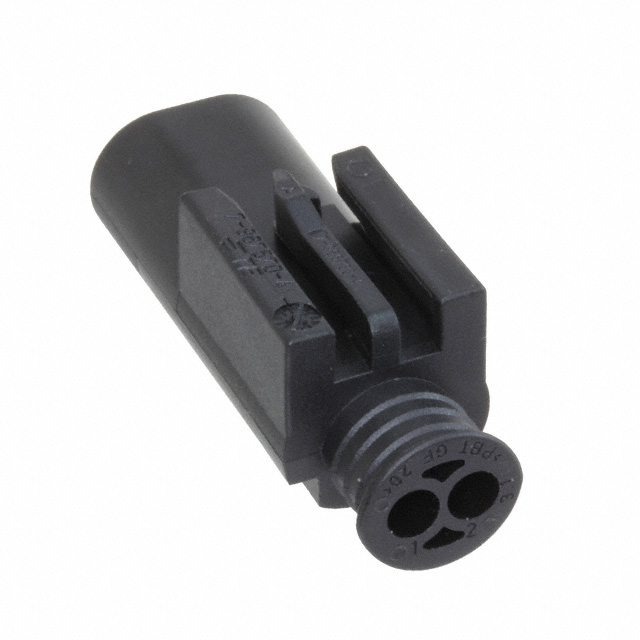

CONN RCPT HSG 2POS 4.00MM
Deep-Dive with AI
Search across all available documentation for this part.
7-967570-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 4.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-967570-4 | 967570 Series |
|---|---|---|
| Color | Yellow | Yellow, Black |
| Connector Type | Receptacle | Receptacle, Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin, Tab |
| Fastening Type | Latch Holder | Latch Holder, Latch Lock |
| Features | Sealed | Sealed, Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 4 mm | 4 mm |
| Pitch [x] | 0.157 in | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.28 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.05 | |||
| 250 | $ 1.03 | |||
| 500 | $ 1.02 | |||
967570 Series
CONN RCPT HSG 2POS 4.00MM
| Part | Note | Contact Termination | Number of Positions | Insulation Material | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Color | Connector Type | Fastening Type | Number of Rows | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-967570-4 | Contacts Not Included | Crimp | 2 | Polybutylene Terephthalate (PBT), Glass Filled | 4 mm | 0.157 in | -40 °C | 120 °C | Male Pin | Yellow | Receptacle | Latch Holder | 1 | Sealed | Free Hanging (In-Line) |
TE Connectivity AMP Connectors 7-967570-3 | Crimp | 2 | Polybutylene Terephthalate (PBT), Glass Filled | 4 mm | 0.157 in | -40 °C | 120 °C | Tab | Yellow | Plug | Latch Lock | 1 | Terminal Position Lock (TPA) | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 1-967570-1 | Contacts Not Included | Crimp | 2 | Polybutylene Terephthalate (PBT), Glass Filled | 4 mm | 0.157 in | -40 °C | 120 °C | Male Pin | Black | Receptacle | Latch Holder | 1 | Sealed | Free Hanging (In-Line) |
Description
General part information
967570 Series
2 Rectangular Connectors - Housings Receptacle Yellow 0.157" (4.00mm)
