DC0024/01-TG-A486G-0.3-2A

Active

t-Global Technology

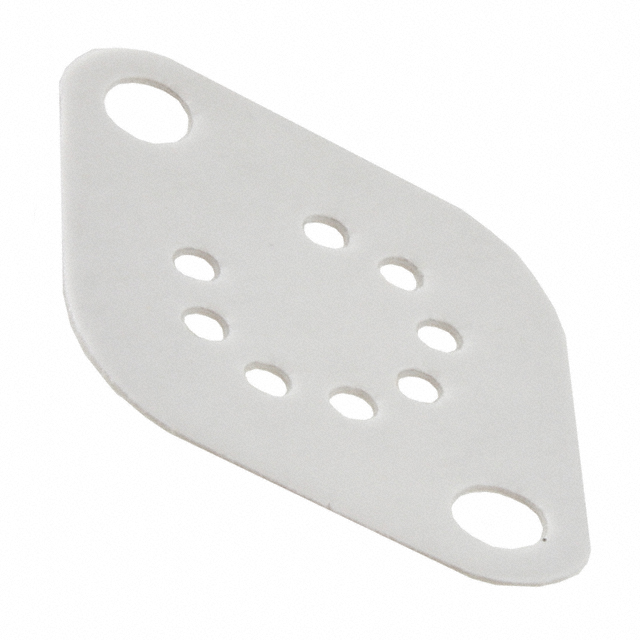

THERM PAD 39.37X26.67MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 39.37X26.67MM W/ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 39.37X26.67MM W/ADH

Part	Shape	Color	Material	Adhesive	Shelf Life	Thickness [x]	Thickness [x]	Thermal Conductivity	Type	Backing, Carrier	Usage	Outline [x]	Outline [y]	Thickness [custom]	Thickness [custom]	Shelf Life Start	Thickness	Thickness
t-Global Technology DC0024/01-TI900-0.12-2A	Rhombus	White	Silicone	Adhesive - Both Sides	24 Months	0.005 in	0.127 mm	1.8 W/m-K	Die-Cut Pad, Sheet	Viscose	TO-3	39.37 mm	26.67 mm
t-Global Technology DC0024/01-TG-A373F-0.25-2A	Rhombus	Yellow		Adhesive - Both Sides	12 Months			1.4 W/m-K	Die-Cut Pad, Sheet		TO-3	39.37 mm	26.67 mm	0.254 mm	0.01 in
t-Global Technology DC0024/01-TG-A486G-0.3-2A	Rhombus	Gray		Adhesive - Both Sides	12 Months			6 W/m-K	Die-Cut Pad, Sheet		TO-3	39.37 mm	26.67 mm	0.305 mm	0.012 "	Date of Purchase
t-Global Technology DC0024/01-TG-A482K-0.1-0	Rhombus	Red	Silicone		24 Months			2.3 W/m-K	Die-Cut Pad, Sheet		TO-3	39.37 mm	26.67 mm			Date of Purchase	0.1 mm	0.0039 in
