ATS-08H-184-C2-R0

Active

Advanced Thermal Solutions Inc.

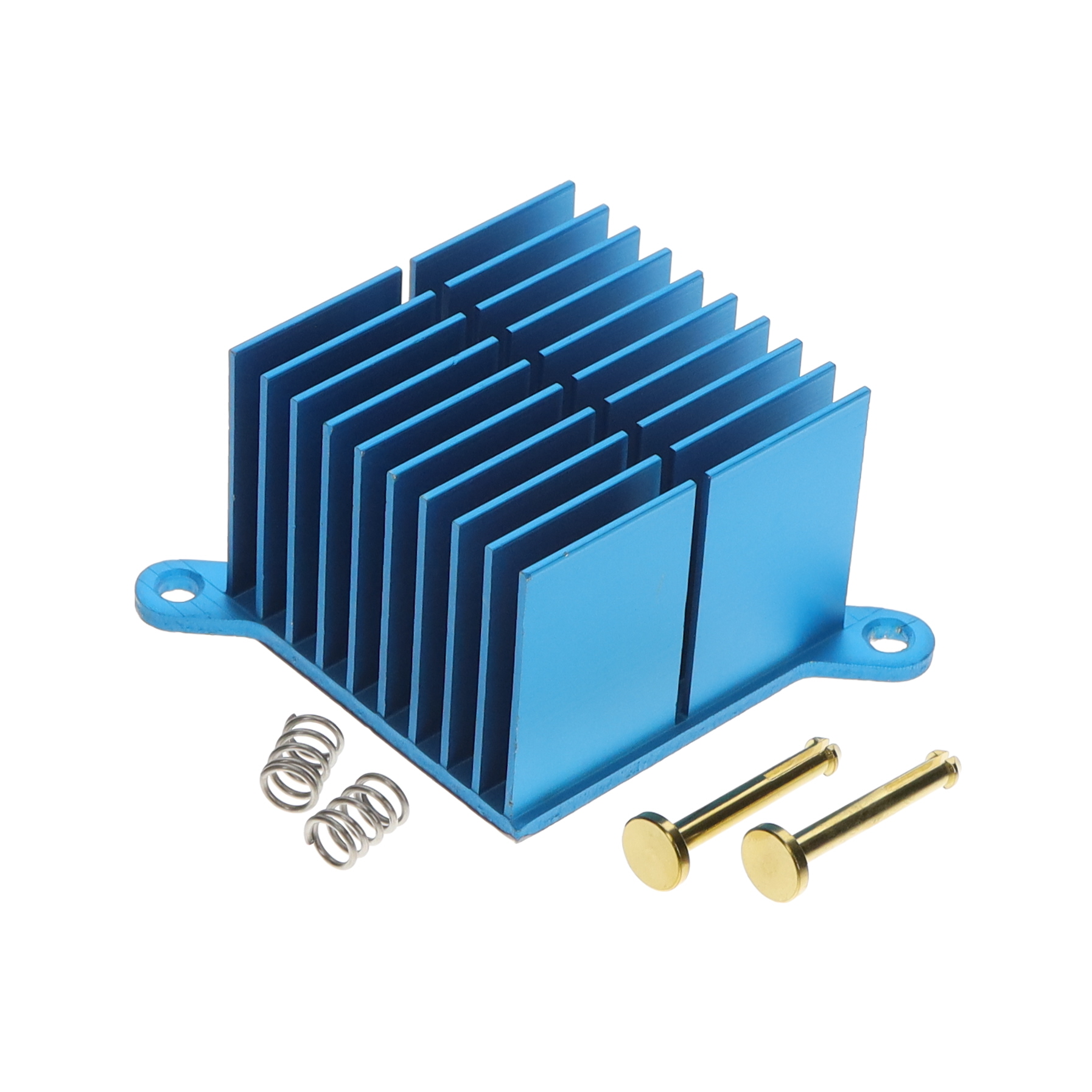

HEATSINK 40X40X25MM R-TAB T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-08H-184-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 40X40X25MM R-TAB T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-08H-184-C2-R0

Attachment Method	Push Pin
Fin Height	0.984 in
Fin Height	25 mm
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Type	Top Mount
Width [x]	1.575 in
Width [x]	40 mm

ATS-08H Series

...

Part	Material Finish	Attachment Method	Type	Width [x]	Width	Material	Shape	Package Cooled	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Width [x]	Fin Height	Fin Height	Length	Width [y]	Width [y]	Length
Advanced Thermal Solutions Inc. ATS-08H-147-C1-R0	Blue Anodized	Push Pin	Top Mount	1.378 in	35 mm	Aluminum	Fins Square	ASIC BGA CPU LGA	13.48 °C/W 100 LFM	1.378 in	35 mm	0.394 in	10 mm
Advanced Thermal Solutions Inc. ATS-08H-23-C1-R0	Blue Anodized	Push Pin	Top Mount	2.362 in		Aluminum	Fins Square	ASIC BGA CPU LGA	11.99 °C/W 100 LFM	2.362 in	60 mm			60 mm	0.59 "	15 mm
Advanced Thermal Solutions Inc. ATS-08H-118-C2-R0	Blue Anodized	Push Pin	Top Mount	1.772 in	45 mm	Aluminum	Fins Square	ASIC BGA CPU LGA	6.54 °C/W 100 LFM	1.772 "					0.59 "	15 mm	45 mm
Advanced Thermal Solutions Inc. ATS-08H-153-C2-R0	Blue Anodized	Push Pin	Top Mount	1.575 in		Aluminum	Fins Square	ASIC BGA CPU LGA	11.95 °C/W 100 LFM			0.394 in	10 mm	40 mm
Advanced Thermal Solutions Inc. ATS-08H-195-C1-R0	Blue Anodized	Push Pin	Top Mount	1.575 in		Aluminum	Fins Square	ASIC BGA CPU LGA	10.88 °C/W			0.472 in	12 mm	40 mm
Advanced Thermal Solutions Inc. ATS-08H-30-C3-R0	Blue Anodized	Push Pin	Top Mount			Aluminum	Fins Square	ASIC BGA CPU LGA	5.35 °C/W 100 LFM						0.984 in	25 mm	70 mm	2.756 in	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-08H-72-C3-R0	Blue Anodized	Push Pin	Top Mount	1.772 in	45 mm	Aluminum	Fins Square	ASIC BGA CPU LGA	5.19 °C/W	1.772 "					1.378 in	35 mm	45 mm
Advanced Thermal Solutions Inc. ATS-08H-151-C1-R0	Blue Anodized	Push Pin	Top Mount	1.378 in	35 mm	Aluminum	Fins Square	ASIC BGA CPU LGA		1.378 in	35 mm	1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-08H-133-C2-R0	Blue Anodized	Push Pin	Top Mount			Aluminum	Fins Square	ASIC BGA CPU LGA	7.42 °C/W 100 LFM			0.394 in	10 mm				70 mm	2.756 in	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-08H-189-C2-R0	Blue Anodized	Push Pin	Top Mount	1.772 in	45 mm	Aluminum	Fins Square	ASIC BGA CPU LGA	4.74 °C/W 100 LFM	1.772 "		0.79 in	20 mm				45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.45
		10	$ 4.33
		25	$ 4.24

Description

General part information

ATS-08H Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
