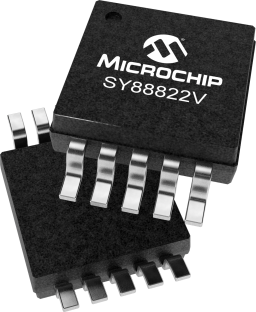

SY88822VKG
ActiveIC LASER DRV 155MBPS 5.5V 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
SY88822VKG
ActiveIC LASER DRV 155MBPS 5.5V 10MSOP
Deep-Dive with AI
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.05 | |
| 25 | $ 11.72 | |||
| 100 | $ 10.65 | |||
| Microchip Direct | TUBE | 1 | $ 14.05 | |
| 25 | $ 11.72 | |||
| 100 | $ 10.65 | |||
| 1000 | $ 8.88 | |||
| 5000 | $ 8.21 | |||
| 10000 | $ 7.61 | |||
Description
General part information
SY88822 Series
The SY88822V is a high speed current switch for driving a semiconductor laser diode in optical transmission applications. The modulation current (IOUT) is controlled by the current (IRSET) through the external resistor RSET. The output OUT is HIGH and no current flows through OUT when output enable is HIGH.
The device incorporates complementary open collector outputs with a 30mA maximum current driving capability. The external resistor REXT must be placed between /OUT and VCC to dissipate the worst case power. RSER is recommended to compensate for laser diode matching issues. Pin 9 and pin 10 should be connected to achieve better performance.
The SY88822V utilizes the high performance bipolar ASSET technology.
Documents
Technical documentation and resources
