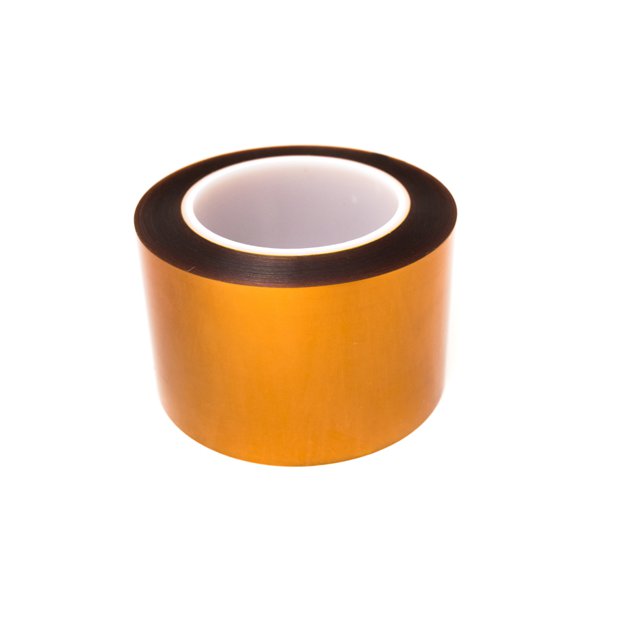

PPTDE-3

Active

Bertech

TAPE DBL SIDED AMBER 3"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPTDE-3

Active

Bertech

TAPE DBL SIDED AMBER 3"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPTDE-3

Adhesive	Silicone
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Double Coated, Double Sided
Temperature Range [Max]	230 °C, 260 °C
Temperature Range [Min]	-100 °F, -73 °C
Thickness	0.102 mm
Thickness	4 mils
Thickness	0.004 in
Thickness - Adhesive	0.003 "
Thickness - Adhesive	0.076 mm
Thickness - Adhesive	3 mils
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Bonding, High Temperature
Width [x]	76.2 mm
Width [x]	3 in

PPTDE Series

Part	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Usage	Width	Width	Width	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Backing, Carrier	Thickness	Thickness	Thickness	Tape Type	Width [y]	Width [y]	Width [x]	Width [x]	Width	Shelf Life	Temperature Range [Min]	Temperature Range [Max]	Shelf Life Start
Bertech PPTDE-7/16	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking	0.44 in	11.13 mm	0.4375 in	-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided
Bertech PPTDE-2 1/4	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking				-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided	57.15 mm	2.25 in
Bertech PPTDE-200MM	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking				-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided			7.87 "	200 mm
Bertech PPTDE-125MM	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking				-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided	125 mm	4.92 in
Bertech PPTDE-7	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking				-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided			7 in	177.8 mm
Bertech PPTDE-4 1/2	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking	4.5 "	114.3 mm		-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided
Bertech PPTDE-3 1/2	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking	3.5 in	88.9 mm		-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided
Bertech PPTDE-1 3/4	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking	1.75 in	44.45 mm		-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided					1 3/4
Bertech PPTDE-5	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Masking				-73 °C	260 °C	-99 °F	500 °F	Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided	127 mm	5 in
Bertech PPTDE-3/8	Amber	0.003 "	0.076 mm	3 mils	Silicone	1 mils	0.025 mm	0.001 "	36 yd	32.9 m	108 ft	Bonding High Temperature	0.38 in	9.65 mm	0.375 in					Polyimide	0.102 mm	4 mils	0.004 in	Double Coated Double Sided						18 Months	-100 °F -73 °C	230 °C 260 °C	Date of Manufacture

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 167.26
		3	$ 154.74
		5	$ 149.37
		7	$ 145.80
		10	$ 142.22
		25	$ 133.27
		50	$ 126.12

Description

General part information

PPTDE Series

Double Coated, Double Sided Tape Silicone Adhesive Amber 3.00" (76.20mm) X 108' (32.9m) 36 yds
