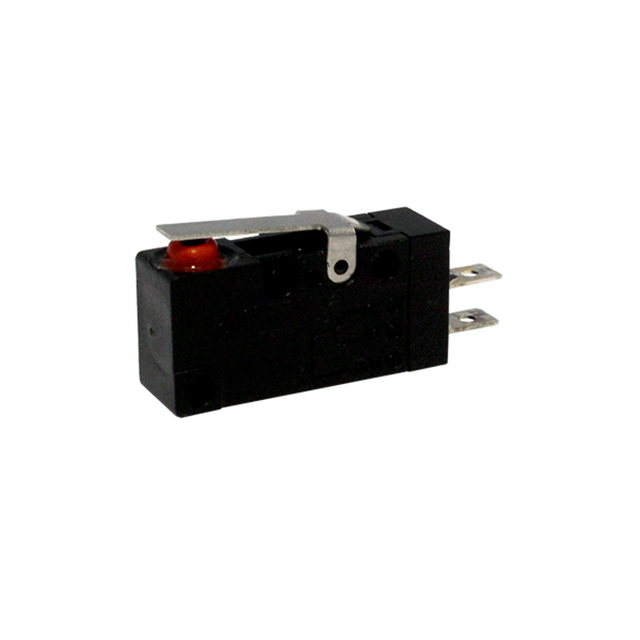

VM3SAQF3002L04
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
VM3SAQF3002L04
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NO 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VM3SAQF3002L04 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NO |
| Differential Travel | 1 mm |
| Differential Travel | 0.04 in |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 300 gf |
| Operating Position | 15 mm |
| Operating Position | 0.591 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.02 in |
| Overtravel | 0.5 mm |
| Pretravel | 2 mm |
| Pretravel | 0.08 in |
| Release Force | 250 gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 4.06 | |
Description
General part information
VM3SAQF3002L04
Switch SPST-NO Chassis Mount
