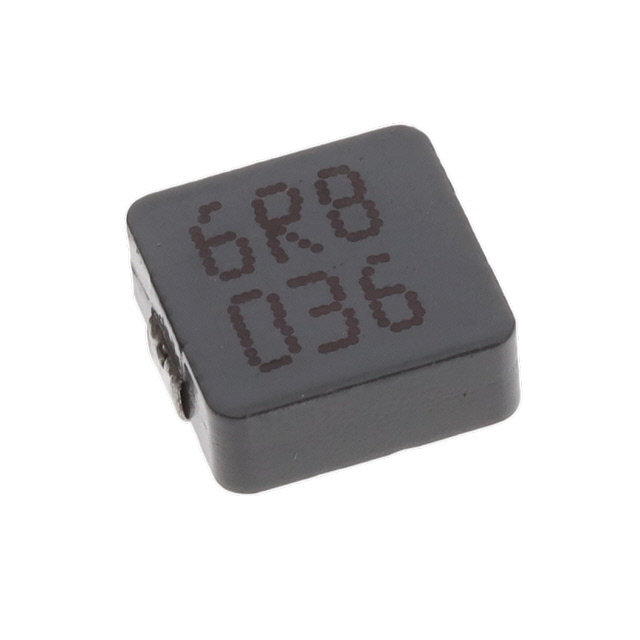

104CDMCDDS-6R8MC
ActiveSumida America Components Inc.
FIXED IND 6.8UH 8.8A 24MOHM SMD
104CDMCDDS-6R8MC
ActiveSumida America Components Inc.
FIXED IND 6.8UH 8.8A 24MOHM SMD
Description
General part information
104CDMCDDS-6R8MC
6.8 µH Shielded Molded Inductor 8.8 A 24mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 104CDMCDDS-6R8MC |
|---|---|
| Current - Saturation (Isat) | 14.5 A |
| Current Rating | 8.8 A |
| DC Resistance (DCR) (Max) | 24 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.453 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 20 % |
| Type | Molded |
