BJ79-9

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.79
		10	$ 27.40

Description

General part information

BJ79 Series

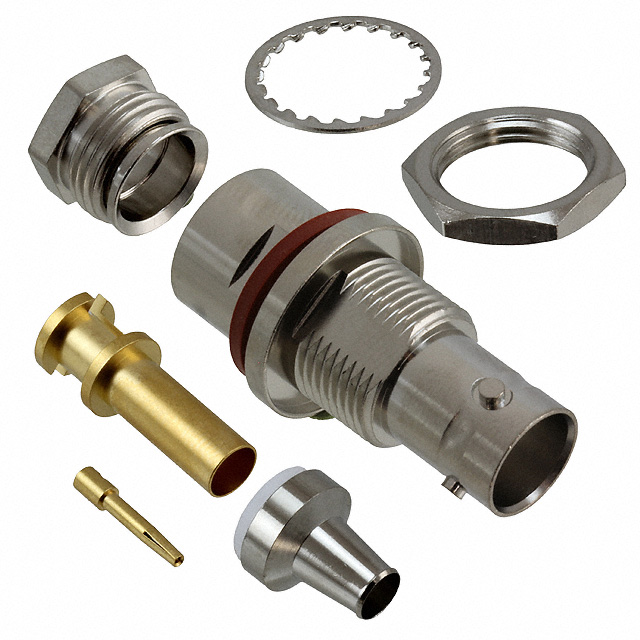

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BJ79-9	BJ79 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	TWC-78-2, TWC-124-2	M17/176-00002, TWC-78-2, TWC-124-2, Raychem 7528A5314, Raychem 2524E0114, Raychem 10602, TRC-50-2, TRC-75-2
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack	Female Socket (Concentric), Jack
Contact Termination	Solder	Crimp, Solder
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	Connector, Washer, Nut	1 Washer, 1 Heat Shrink, 1 Connector, 1 Nut, 1 Strain Relief, Connector, Washer, Nut
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Wrench Clamp	Crimp, Wrench Clamp
Voltage Rating	400 V	400 V

BJ79 Series

CONN TRB JACK STR CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Ports	Includes	Contact Termination	Cable Group	Fastening Type	Features	Connector Style	Mating Cycles	Mounting Feature	Connector Type	Housing Color	Center Contact Plating	Frequency - Max [Max]	Body Finish	Body Material	Shield Termination	Center Contact Material	Impedance
Cinch Connectivity Solutions Trompeter BJ79C-201	-65 ░C	165 °C	400 V	1	1 Connector, 1 Heat Shrink, 1 Nut, 1 Strain Relief, 1 Washer	Crimp	M17/176-00002	Bayonet Lock	Three Lug	TRB, Twinaxial/Triaxial	500	Bulkhead - Front Side Nut	Female Socket (Concentric), Jack	Silver	Gold	500 MHz	Nickel	Brass	Crimp	Beryllium Copper
Cinch Connectivity Solutions Trompeter BJ79-9	-65 ░C	165 °C	400 V	1	Connector, Nut, Washer	Solder	TWC-124-2, TWC-78-2	Bayonet Lock	Three Lug	TRB, Twinaxial/Triaxial	500	Bulkhead - Front Side Nut	Female Socket (Concentric), Jack	Silver	Gold	500 MHz	Nickel	Brass	Wrench Clamp	Beryllium Copper	Non-Constant
