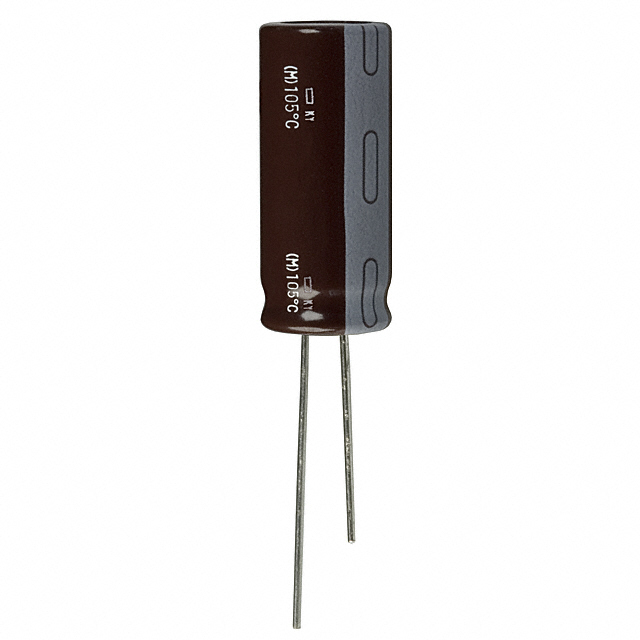

EKY-160ELL272MK30S

Active

Chemi-Con

CAP ALUM 2700UF 20% 16V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-160ELL272MK30S

Active

Chemi-Con

CAP ALUM 2700UF 20% 16V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.57
		10	$ 1.02
		50	$ 0.79
		100	$ 0.71
		500	$ 0.59
		1000	$ 0.55
		3000	$ 0.50
		5000	$ 0.48

Description

General part information

EKY-160E Series

2700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-160ELL272MK30S	EKY-160E Series

Applications	General Purpose	General Purpose
Capacitance	2700 µF	1.5 - 4700 µF
Height - Seated (Max)	-	13 - 37 mm
Height - Seated (Max)	-	0.512 - 16.51 "
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max) [Max]	31.5 mm	1.634 - 31.5 mm
Height - Seated (Max) [Max]	1.24 in	0.492 - 1.24 in
Impedance	24 mOhms	15 - 580 mOhms
Lead Spacing	5 mm	2 - 7.5 mm
Lead Spacing	0.197 in	0.079 - 0.295 in
Lifetime @ Temp.	10000 Hrs	5000 - 10000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	2.65 A	1.05 - 840 mA
Ripple Current @ Low Frequency	1.9875 A	1.14 - 870 mA
Size / Dimension [diameter]	0.492 in	0.197 - 0.709 "
Size / Dimension [diameter]	12.5 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	16 V	16 V

EKY-160E Series

CAP ALUM 330UF 20% 16V RADIAL TH

Part	Impedance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Package / Case	Lifetime @ Temp.	Applications	Mounting Type	Voltage - Rated	Polarization	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-160ELL331MHB5D	130 mOhms	320 mA	640 mA	3.5 mm	0.138 in	Radial, Can	7000 Hrs	General Purpose	Through Hole	16 V	Polar	330 µF	13 mm	0.512 "	20 %	0.315 "	8 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL562MMN3S	15 mOhms	3.5445 A		7.5 mm	0.295 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	5.6 mF	33 mm	1.299 in	20 %	0.709 "	18 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL121MF11D	220 mOhms	136 mA	340 mA	2.5 mm	0.098 in	Radial, Can	5000 Hrs	General Purpose	Through Hole	16 V	Polar	120 µF			20 %	0.248 in	6.3 mm	-40 °C	105 ░C	0.492 in	12.5 mm
Chemi-Con EKY-160ELL152MK20S	35 mOhms	1.14 A		5 mm	0.197 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	1.5 mF			20 %	0.492 in	12.5 mm	-40 °C	105 ░C	0.846 in	21.5 mm
Chemi-Con EKY-160ELL681MH20D	69 mOhms	630 mA	1.05 A	3.5 mm	0.138 in	Radial, Can	7000 Hrs	General Purpose	Through Hole	16 V	Polar	680 µF			20 %	0.315 "	8 mm	-40 °C	105 ░C	0.846 in	21.5 mm
Chemi-Con EKY-160ELL102MK15S	49 mOhms	870 mA	1.45 A	5 mm	0.197 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	1000 µF	16.5 mm	16.51 mm	20 %	0.492 in	12.5 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL332MK35S	20 mOhms	2.16 A	2.88 A	5 mm	0.197 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	3.3 mF	36.5 mm	1.437 in	20 %	0.492 in	12.5 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL472MLN3S	17 mOhms	2.9325 A	3.45 A	7.5 mm	0.295 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	4700 µF	33 mm	1.299 in	20 %	0.63 in	16 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL560ME11D	580 mOhms	84 mA	210 mA	2 mm	0.079 in	Radial, Can	5000 Hrs	General Purpose	Through Hole	16 V	Polar	56 µF			20 %	0.197 "	5 mm	-40 °C	105 ░C	0.492 in	12.5 mm
Chemi-Con EKY-160EC3331MHB5D		320 mA	640 mA	3.5 mm	0.138 in	Radial, Can	7000 Hrs	General Purpose	Through Hole	16 V	Polar	330 µF	13 mm	0.512 "	20 %	0.315 "	8 mm	-40 °C	105 ░C
