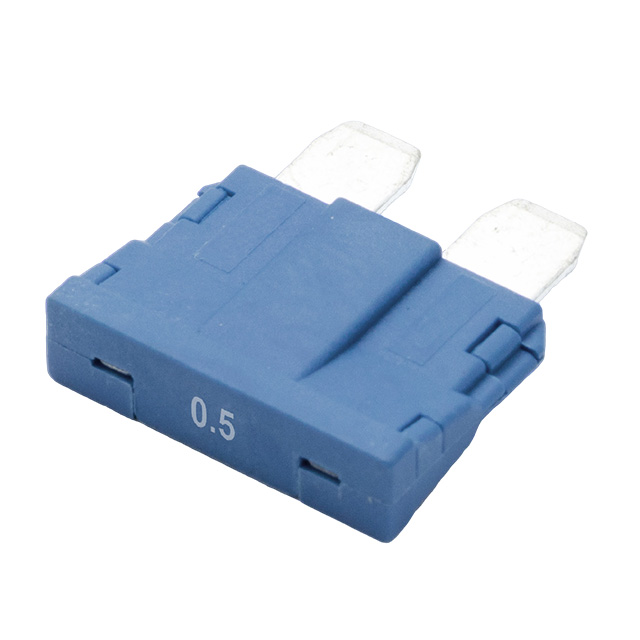

Specification	ANR58-UL-500MA

Approval Agency	cURus, UL 248
Breaking Capacity	1 kA
Color	Dark Blue
Current Rating	0.5 A
DC Cold Resistance	0.29 Ohms
Fuse Type	Automotive
Melting I²t	0.3
Mounting Type	Requires Holder
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	ATO/ATC, Blade
Response Time	Fast Blow
Size / Dimension Height	0.531 in
Size / Dimension Length	0.748 in
Size / Dimension Width	0.197 in
Voltage Rating - DC	58 VDC

ANR58 Series

Part	DC Cold Resistance	Mounting Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Fuse Type	Response Time	Breaking Capacity	Voltage Rating - DC	Melting I²t	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Package / Case	Approval Agency	Color
OptiFuse ANR58-UL-1A	100 mOhm	Requires Holder	1 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	2.3	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Black
OptiFuse ANR58-UL-15A	0.004 Ohms	Requires Holder	15 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	270	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Blue
OptiFuse ANR58-UL-12A		Requires Holder	12 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC		0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Light Pink
OptiFuse ANR58-2A	0.043 Ohms	Requires Holder	2 A			Automotive	Fast Blow	1 kA	58 VDC	9.6	0.531 in	0.197 in	0.748 in	ATO/ATC Blade		Gray
OptiFuse ANR58-UL-20A	0.003 Ohms	Requires Holder	20 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	360	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Yellow
OptiFuse ANR58-UL-2A	0.043 Ohms	Requires Holder	2 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	9.6	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Gray
OptiFuse ANR58-UL-40A	1.25 Ohms	Requires Holder	40 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	3200	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Orange
OptiFuse ANR58-UL-25A	1.9 Ohms	Requires Holder	25 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	813	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Clear
OptiFuse ANR58-UL-4A	0.022 Ohms	Requires Holder	4 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC	36.8	0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Pink
OptiFuse ANR58-UL-16A		Requires Holder	16 A	125 °C	-40 °C	Automotive	Fast Blow	1 kA	58 VDC		0.531 in	0.197 in	0.748 in	ATO/ATC Blade	cURus UL 248	Light Green
