151240-7422-TB
Active3M
CONN HEADER R/A 40POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 151240-7422-TB | 151240 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 15 - 30 µin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.38 - 0.76 µm |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Mating | 3.86 mm | 3.3 - 3.86 mm |
| Contact Length - Mating | 0.152 in | 0.13 - 0.152 in |
| Contact Length - Post | 0.118 in | 0.118 in |
| Contact Length - Post | 3 mm | 3 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height [z] | 0.165 in | 0.06 - 0.165 in |
| Insulation Height [z] | 4.2 mm | 1.52 - 4.2 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole |
| Number of Positions | 40 | 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Contact Length | - | 7.8 - 8.36 mm |
| Overall Contact Length | - | 0.307 - 0.329 in |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Row Spacing - Mating | 0.079 in | 0.079 in |
| Row Spacing - Mating | 2 mm | 2 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
151240 Series
CONN HEADER R/A 40POS 2MM
| Part | Insulation Height [z] | Insulation Height [z] | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Number of Positions | Number of Rows | Fastening Type | Contact Length - Post | Contact Length - Post | Style | Connector Type | Pitch - Mating [x] | Pitch - Mating [x] | Contact Material | Termination | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.165 in | 4.2 mm | Unshrouded | 0.079 in | 2 mm | Black | UL94 V-0 | 105 ░C | -55 °C | Through Hole, Right Angle | Tin-Lead | 3.86 mm | 0.152 in | All | 40 | 2 | Push-Pull | 0.118 in | 3 mm | Board to Board, Cable | Header | 0.079 in | 2 mm | Copper Alloy | Solder | Square | 15 µin | 0.38 µm | Male Pin | 200 µin | 5.08 µm | Gold | |||
0.06 in | 1.52 mm | Unshrouded | 0.079 in | 2 mm | Black | UL94 V-0 | 105 ░C | -55 °C | Through Hole | Tin-Lead | 3.86 mm | 0.152 in | All | 40 | 2 | Push-Pull | 0.118 in | 3 mm | Board to Board, Cable | Header | 0.079 in | 2 mm | Copper Alloy | Solder | Square | 30 Áin | 0.76 Ám | Male Pin | 200 µin | 5.08 µm | Gold | 8.36 mm | 0.329 in | |
0.165 in | 4.2 mm | Unshrouded | 0.079 in | 2 mm | Black | UL94 V-0 | 105 ░C | -55 °C | Through Hole, Right Angle | Tin-Lead | 3.86 mm | 0.152 in | All | 40 | 2 | Push-Pull | 0.118 in | 3 mm | Board to Board, Cable | Header | 0.079 in | 2 mm | Copper Alloy | Solder | Square | 30 Áin | 0.76 Ám | Male Pin | 200 µin | 5.08 µm | Gold | |||
0.06 in | 1.52 mm | Unshrouded | 0.079 in | 2 mm | Black | UL94 V-0 | 105 ░C | -55 °C | Through Hole | Tin | 3.3 mm | 0.13 in | All | 40 | 2 | Push-Pull | 0.118 in | 3 mm | Board to Board, Cable | Header | 0.079 in | 2 mm | Copper Alloy | Solder | Square | 30 Áin | 0.76 Ám | Male Pin | 200 µin | 5.08 µm | Gold | 7.8 mm | 0.307 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
151240 Series

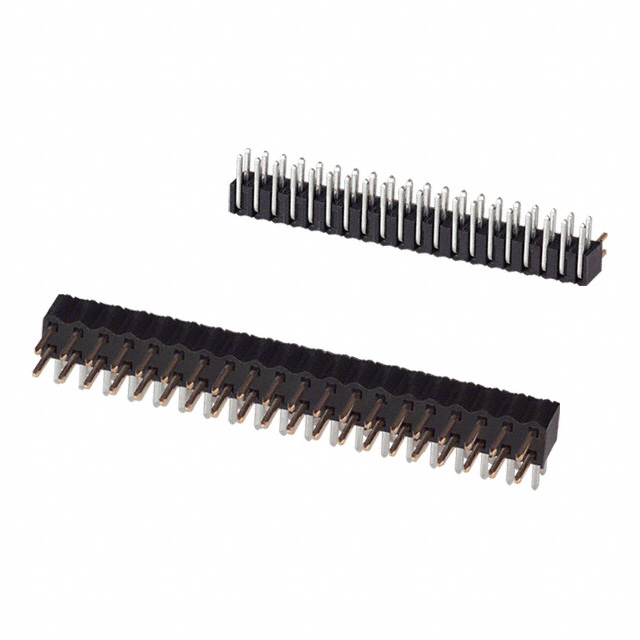

Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm)
