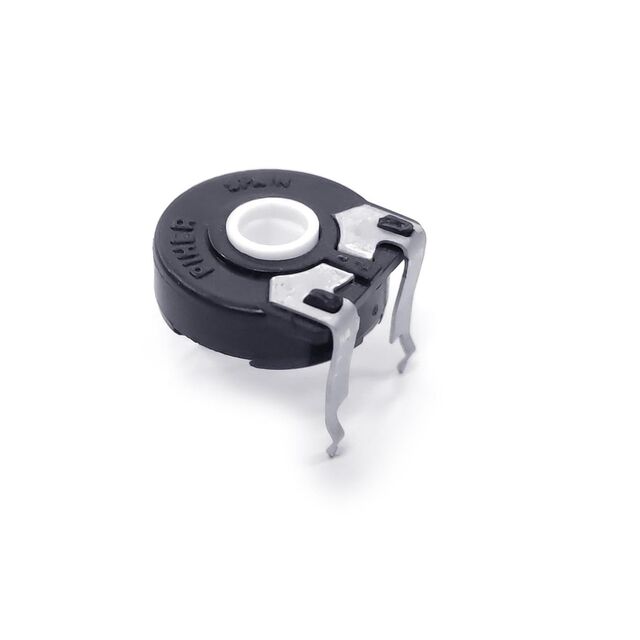

PT15GV22-104A2020-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 100KOHM 0.25W PC PIN TOP
PT15GV22-104A2020-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 100KOHM 0.25W PC PIN TOP
Description
General part information
PT15GV22-104A2020-E-PM-S
100 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | PT15GV22-104A2020-E-PM-S |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 100 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Diameter | 0.591 in |
| Size / Dimension Shape | Round |
| Termination Style | PC Pins |
| Tolerance | 20 % |
