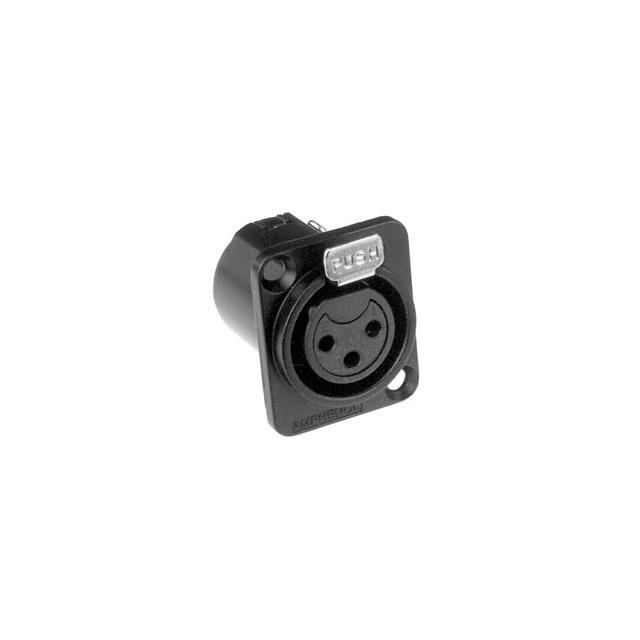

AC3FDZB BULK
ActiveAmphenol Sine Systems Corp
METAL PANEL MOUNT 3 SKT BLACK BU
Deep-Dive with AI
Search across all available documentation for this part.
AC3FDZB BULK
ActiveAmphenol Sine Systems Corp
METAL PANEL MOUNT 3 SKT BLACK BU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AC3FDZB BULK | AC3F Series |
|---|---|---|
| - | - | |
| Applications | Audio | Audio |
| Color | Black | Black, Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Receptacle, Female Sockets |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | 1.97 Áin |
| Contact Finish Thickness - Mating | - | 0.05 Ám |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Bronze |
| Current Rating (Amps) | 15 A | 6 - 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | - | Board Guide, Ground |
| Ingress Protection | IP40 | IP40 |
| Insert Material | Glass Filled, Polyamide (PA66), Nylon 6/6 | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | - | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal, Plastic |
| Shell Finish | Black | Black, Nickel |
| Shell Material | Zinc Die Cast | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | - | Solder |
AC3F Series
3 POLE XLR FEMALE CHASSIS MOUNT,
| Part | Shell Size - Insert | Connector Type | Mounting Feature | Orientation | Contact Material | Color | Shell Material | Applications | Shielding | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Fastening Type | Shell Finish | Insert Material | Current Rating (Amps) | Ingress Protection | Features | Mounting Type | Contact Finish - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp AC3FBV-AU-PRE | ||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3FDZB BULK | XLR | Female Sockets, Plug | Flange | Keyed | Phosphor Bronze | Black | Zinc Die Cast | Audio | Unshielded | Metal | -25 °C | 75 ░C | UL94 V-0 | Latch Lock | Black | Glass Filled, Nylon 6/6, Polyamide (PA66) | 15 A | IP40 | ||||||
Amphenol Sine Systems Corp AC3FBHL2-AU-PRE | XLR | Receptacle, Female Sockets | Flange | Keyed | Bronze | Black, Silver | Audio | Unshielded | Plastic | -25 °C | 75 ░C | UL94 V-0 | Latch Lock | Glass Filled, Nylon 6/6, Polyamide (PA66) | 6 A | IP40 | Board Guide, Ground | Panel Mount, Right Angle, Through Hole | Gold | Solder | 1.97 Áin | 0.05 Ám | ||
Amphenol Sine Systems Corp AC3FBV2-AU-PRE | ||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3FDZ BULK | XLR | Female Sockets, Plug | Flange | Keyed | Phosphor Bronze | Silver | Zinc Die Cast | Audio | Shielded | Metal | -25 °C | 75 ░C | UL94 V-0 | Latch Lock | Nickel | Glass Filled, Nylon 6/6, Polyamide (PA66) | 15 A | IP40 | Ground | |||||
Amphenol Sine Systems Corp AC3FBVL2-AU-PRE | ||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3FBVL1-AU-PRE | ||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3FBV1-AU-PRE |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 4.09 | |
Description
General part information
AC3F Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
