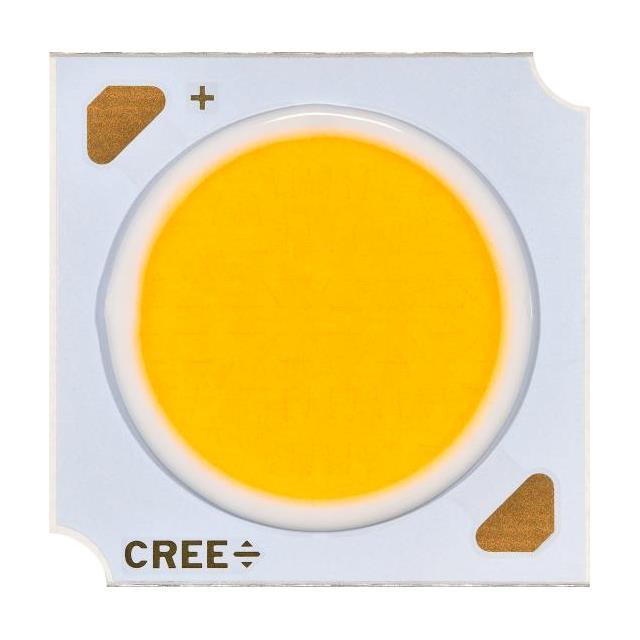

CMB1818-R096-00PN0U0A35G

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1818-R096-00PN0U0A35G

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	96	$ 7.57

Description

General part information

CMB1818 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1818 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1818-R096-00PN0U0A35G	CMB1818 Series

CCT (K)	3500 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	Cool, White, Neutral, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	1.5 A	1.5 A
Current - Test	500 mA	500 mA
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	12 mm	12 mm
Lumens/Watt @ Current - Test	-	115 - 180 lm/W
Luminous Flux @ Current/Temperature	-	1929 - 3020 lm
Size / Dimension [x]	17.85 mm	17.85 mm
Size / Dimension [y]	17.85 mm	17.85 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	33.5 V	33.5 V

CMB1818 Series

LED UNI-COLOR WHITE 2-PIN COB TRAY

Part	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Lens Type	Lumens/Watt @ Current - Test	Height [z]	Temperature - Test	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Type	Current - Max [Max]	CRI (Color Rendering Index)	Viewing Angle	Color	Configuration	Luminous Flux @ Current/Temperature	CCT (K)
Cree LED CMB1818-R096-000N0U0A50G	17.85 mm	17.85 mm	500 mA	Flat	141 lm/W	1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	90	115 °	Cool, White	Square	2359 lm
Cree LED CMB1818-R096-00PN0U0A40G	17.85 mm	17.85 mm	500 mA	Flat		1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	90	115 °	Neutral, White	Square		4000 K
Cree LED CMB1818-R096-000N0U0A30G	17.85 mm	17.85 mm	500 mA	Flat	138 lm/W	1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	90	115 °	Warm, White	Square	2314 lm	3000 K
Cree LED CMB1818-R096-000N0H0A27G	17.85 mm	17.85 mm	500 mA	Flat	152 lm/W	1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	80	115 °	Warm, White	Square	2549 lm	2700 K
Cree LED CMB1818-R096-00PN0U0A35H	17.85 mm	17.85 mm	500 mA	Flat		1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	90	115 °	Warm, White	Square		3500 K
Cree LED CMB1818-0000-000N0Z0A40H	17.85 mm	17.85 mm	500 mA	Flat	126 lm/W	1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	95	115 °	Neutral, White	Square	2118 lm	4000 K
Cree LED CMB1818-R096-00PN0Z0AL7C	17.85 mm	17.85 mm	500 mA	Flat		1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	95	115 °		Square
Cree LED CMB1818-R096-00PN0Z0A35H	17.85 mm	17.85 mm	500 mA	Flat		1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	95	115 °	Warm, White	Square		3500 K
Cree LED CMB1818-0000-000N0H0A35G	17.85 mm	17.85 mm	500 mA	Flat	161 lm/W	1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	80	115 °	Warm, White	Square	2703 lm	3500 K
Cree LED CMB1818-R096-000N0B0A40E	17.85 mm	17.85 mm	500 mA	Flat	177 lm/W	1.75 mm	85 °C	33.5 V	12 mm	Chip On Board (COB)	1.5 A	70	115 °	Neutral, White	Square	2960 lm	4000 K
