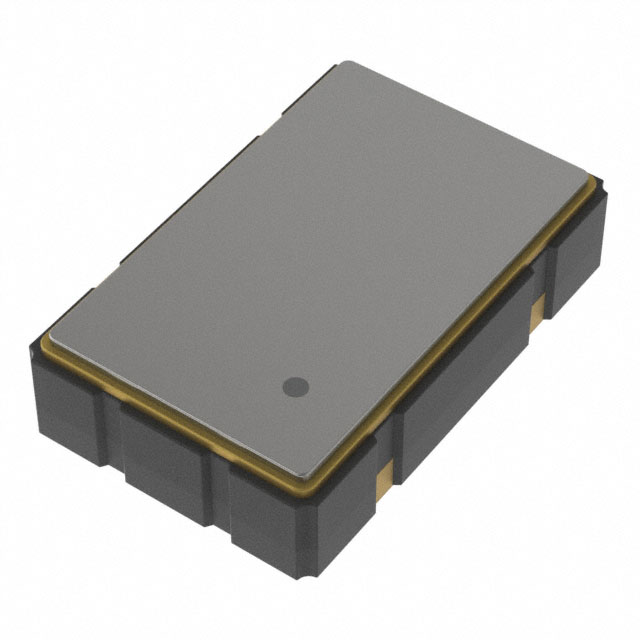

CA50C2403INT
ActiveCTS-Frequency Controls
XTAL OSC XO 24.0000MHZ HCMOS TTL
CA50C2403INT
ActiveCTS-Frequency Controls
XTAL OSC XO 24.0000MHZ HCMOS TTL
Description
General part information
CA50C2403INT
24 MHz XO (Standard) HCMOS, TTL Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CA50C2403INT |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 30 mA |
| Frequency | 24 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | TTL, HCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 5 mm |
| Package Name | 4-SMD |
| Package Width | 3.2 mm |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
