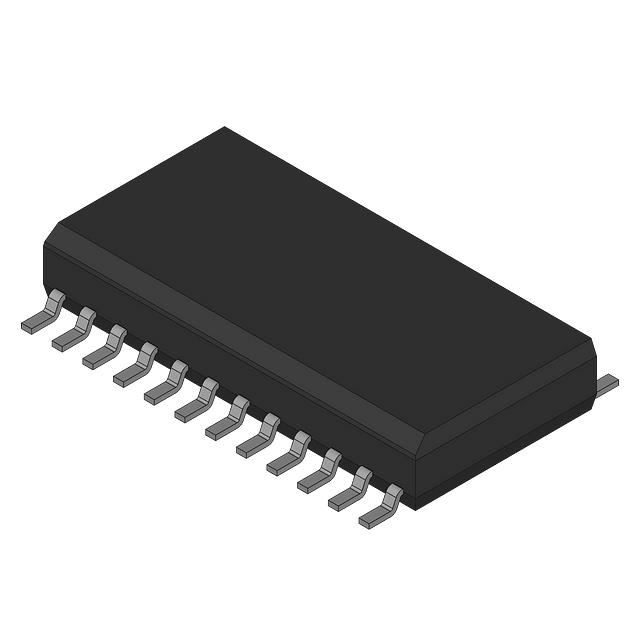

SN74LS646SG

Active

Advanced Micro Devices

IC TXRX NON-INVERT 24SOIC

Search across all available documentation for this part.

Active

Advanced Micro Devices

IC TXRX NON-INVERT 24SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

REGISTERED BUS TRANSCVR, 8-BIT

Part	Output Type	Number of Elements	Mounting Type	Supplier Device Package	Number of Bits per Element	Package / Case [custom]	Package / Case	Package / Case [custom]
Advanced Micro Devices SN74LS646NS
Advanced Micro Devices SN74LS646SG	3-State	1	Surface Mount	24-SOIC	8	7.5 mm	24-SOIC	0.295 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	51	$ 5.90

General part information

Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 24-SOIC

Technical documentation and resources

No documents available
