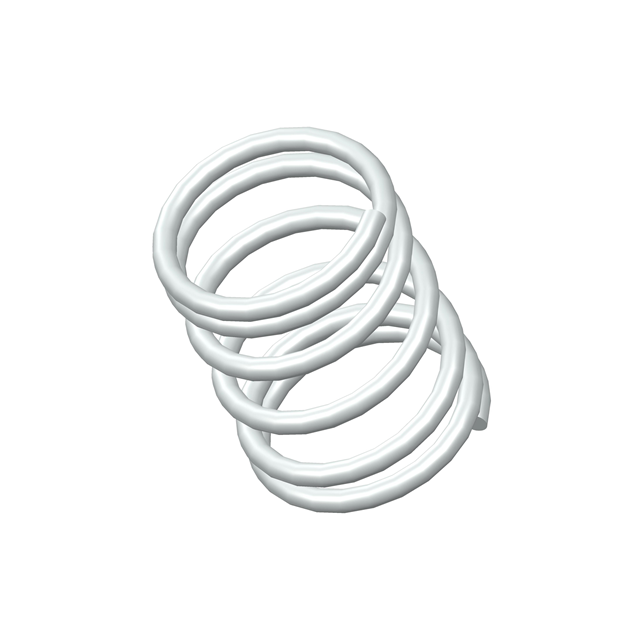

KK-92CS
ActiveCentury Spring Corp
COMP O= .312,L= .44,W= .030
KK-92CS
ActiveCentury Spring Corp
COMP O= .312,L= .44,W= .030
Description
General part information
KK-92CS
COMP O= .312,L= .44,W= .030
Technical Specifications
Parameters and characteristics for this part
| Specification | KK-92CS |
|---|---|
| Diameter - Inside | 0.252 in |
| Diameter - Outside | 0.312 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.44 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 11 lbs/in |
| Type | Compression |
| Wire Diameter | 0.03 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
