Cable Assemblies
RG214-LSZH-NM-SMRA(QTY:15ft)
ActiveMcGill Microwave Systems
RG214-LSZH CABLE ASSY 15FT NM TO
Cable Assemblies
RG214-LSZH-NM-SMRA(QTY:15ft)
ActiveMcGill Microwave Systems
RG214-LSZH CABLE ASSY 15FT NM TO
Technical Specifications
Parameters and characteristics for this part
| Specification | RG214-LSZH-NM-SMRA(QTY:15ft) |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 1.1 GHz, 3 GHz |
| Length | 180 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.87 | <6d |
| 10 | $ 108.19 | |||
| 25 | $ 98.92 | |||
CAD
3D models and CAD resources for this part
Description
General part information
RG214-LSZH-NM-SMRA(QTY:15ft)

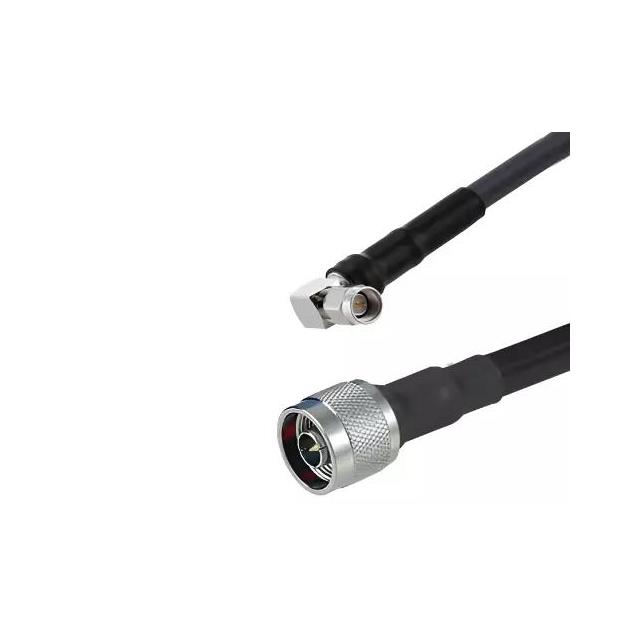

Cable Assembly Coaxial N-Type to SMA RG-214 180.0" (4.6m) 15.0'
