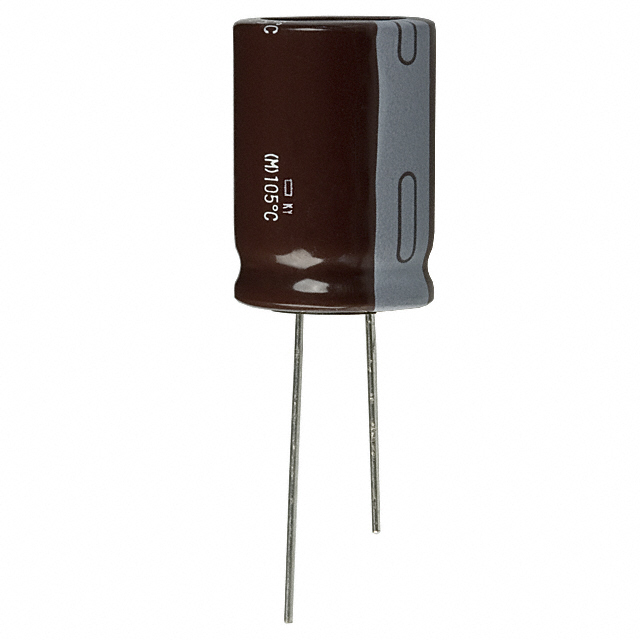

EKY-350ELL222MM25S

Active

Chemi-Con

CAP ALUM 2200UF 20% 35V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-350ELL222MM25S

Active

Chemi-Con

CAP ALUM 2200UF 20% 35V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.15
		10	$ 0.86
		50	$ 0.79
		100	$ 0.64
		500	$ 0.53

Description

General part information

EKY-350E Series

2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-350ELL222MM25S	EKY-350E Series

Applications	General Purpose	General Purpose
Capacitance	2200 µF	1.2 - 3900 µF
Height - Seated (Max)	-	1.634 - 31.5 mm
Height - Seated (Max)	-	0.492 - 1.24 in
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max] [z]	1.043 in	0.512 - 16.51 in
Height - Seated (Max) [Max] [z]	26.5 mm	13 - 37 mm
Impedance	19 mOhms	12 - 580 mOhms
Lead Spacing	7.5 mm	2 - 7.5 mm
Lead Spacing	0.295 in	0.079 - 0.295 in
Lifetime @ Temp.	10000 Hrs	5000 - 10000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	3.14 A	1.05 - 865 A
Ripple Current @ Low Frequency	2.355 A	1.14 - 825 mA
Size / Dimension [diameter]	0.709 "	0.197 - 0.709 "
Size / Dimension [diameter]	18 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	35 V	35 V

EKY-350E Series

CAP ALUM 270UF 20% 35V RADIAL TH

Part	Ripple Current @ Low Frequency	Mounting Type	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Polarization	Lifetime @ Temp.	Impedance	Package / Case	Capacitance	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-350ELL271MH20D	525 mA	Through Hole	1.05 A	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	3.5 mm	0.138 in	35 V	Polar	7000 Hrs	69 mOhms	Radial, Can	270 µF	20 %	0.315 "	8 mm
Chemi-Con EKY-350ELL122MK30S	1.59 A	Through Hole	2.65 A	-40 °C	105 ░C	General Purpose	31.5 mm	1.24 in	5 mm	0.197 in	35 V	Polar	10000 Hrs	24 mOhms	Radial, Can	1.2 mF	20 %	0.492 in	12.5 mm
Chemi-Con EKY-350ELL681MJ30S	1.146 A	Through Hole	1.91 A	-40 °C	105 ░C	General Purpose	31.5 mm	1.24 in	5 mm	0.197 in	35 V	Polar	7000 Hrs	31 mOhms	Radial, Can	680 µF	20 %	0.394 in	10 mm
Chemi-Con EKY-350ELL332MMP1S	3.165 A	Through Hole	4.22 A	-40 °C	105 ░C	General Purpose			7.5 mm	0.295 in	35 V	Polar	10000 Hrs	14 mOhms	Radial, Can	3.3 mF	20 %	0.709 "	18 mm	37 mm	1.457 in
Chemi-Con EKY-350ETE102MK25S	1.338 A	Through Hole	2.23 A	-40 °C	105 ░C	General Purpose			5 mm	0.197 in	35 V	Polar	10000 Hrs	27 mOhms	Radial, Can	1000 µF	20 %	0.492 in	12.5 mm	26.5 mm	1.043 in
Chemi-Con EKY-350ETD471MJ20S	700 mA	Through Hole	1.4 A	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	5 mm	0.197 in	35 V	Polar	7000 Hrs	46 mOhms	Radial, Can	470 µF	20 %	0.394 in	10 mm
Chemi-Con EKY-350ELL330ME11D	84 mA	Through Hole	210 mA	-40 °C	105 ░C	General Purpose	12.5 mm	0.492 in	2 mm	0.079 in	35 V	Polar	5000 Hrs	580 mOhms	Radial, Can	33 ÁF	20 %	0.197 "	5 mm
Chemi-Con EKY-350ELL102MM15S	1.326 A	Through Hole	2.21 A	-40 °C	105 ░C	General Purpose			7.5 mm	0.295 in	35 V	Polar	10000 Hrs	43 mOhms	Radial, Can	1000 µF	20 %	0.709 "	18 mm	16.5 mm	16.51 mm
Chemi-Con EKY-350ELL272MLP1S	2.7075 A	Through Hole	3.61 A	-40 °C	105 ░C	General Purpose			7.5 mm	0.295 in	35 V	Polar	10000 Hrs	15 mOhms	Radial, Can	2700 µF	20 %	0.63 in	16 mm	37 mm	1.457 in
Chemi-Con EKY-350EC3221MH15D	420 mA	Through Hole	840 mA	-40 °C	105 ░C	General Purpose			3.5 mm	0.138 in	35 V	Polar	7000 Hrs	87 mOhms	Radial, Can	220 µF	20 %	0.315 "	8 mm	16.5 mm	16.51 mm
