305-024-520-207

Active

EDAC Inc.

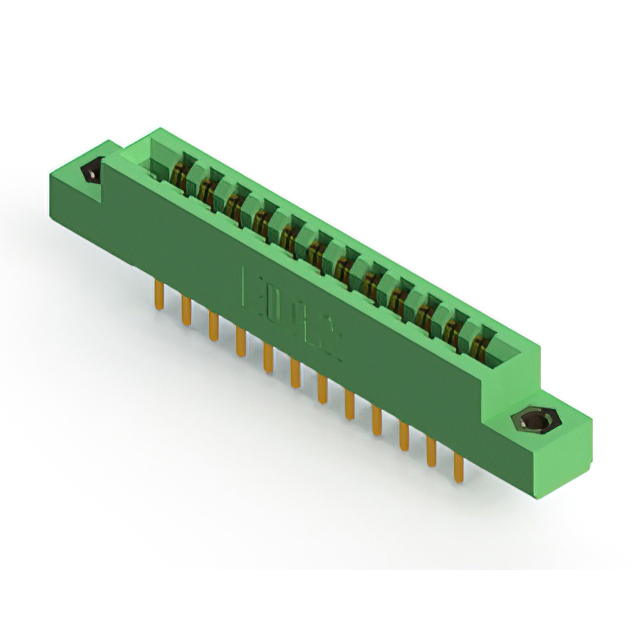

3.96MM STRAIGHT 24P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

305-024-520-207

Active

EDAC Inc.

3.96MM STRAIGHT 24P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.28
LCSC	Piece	1	$ 6.51
		200	$ 2.52
		500	$ 2.43
		1000	$ 2.39

Description

General part information

305-024 Series

24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	305-024-520-207	305-024 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Green	Green
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Semi Bellows	Semi Bellows
Features	-	Card Extender
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert	Floating Bobbin, Flush Mount, Threaded Insert, 4-40, Top Opening, M3, Unthreaded
Flange Feature	-	0.116 - 0.156 in
Flange Feature	-	2.95 - 3.96 mm
Gender	Female	Female
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Board Edge, Straddle Mount, Free Hanging (In-Line)
Number of Positions	24	24
Number of Positions/Bay/Row [custom]	12	12
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.156 in	0.156 in
Pitch [x]	3.96 mm	3.96 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Solder Eyelet(s)
Termination Rows	2	2

305-024 Series

CONN EDGE DUAL FMALE 24POS 0.156

Part	Termination Rows	Contact Material	Contact Type	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Number of Rows	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Mounting Type	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 305-024-521-503	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual	0.116 in	Floating Bobbin, Flush Mount	2.95 mm	Polyester Thermoplastic	Panel Mount, Through Hole	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-500-558	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual		4-40, Flush Mount, Threaded Insert, Top Opening		Polyester Thermoplastic		Solder Eyelet(s)	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-500-208	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual		4-40, Flush Mount, Threaded Insert, Top Opening		Polyester Thermoplastic		Solder Eyelet(s)	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-556-258	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual		4-40, Flush Mount, Threaded Insert, Top Opening		Polyester Thermoplastic	Board Edge, Straddle Mount	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-521-507	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual		Flush Mount, M3, Threaded Insert, Top Opening		Polyester Thermoplastic	Panel Mount, Through Hole	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-520-502	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual	0.128 "	Flush Mount, Top Opening, Unthreaded	3.25 mm	Polyester Thermoplastic	Panel Mount, Through Hole	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-555-558	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual		4-40, Flush Mount, Threaded Insert, Top Opening		Polyester Thermoplastic	Board Edge, Straddle Mount	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
EDAC Inc. 305-024-555-501	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual				Polyester Thermoplastic	Board Edge, Straddle Mount	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12	Card Extender
EDAC Inc. 305-024-556-204	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual	0.156 in	Flush Mount, Top Opening, Unthreaded	3.96 mm	Polyester Thermoplastic	Board Edge, Straddle Mount	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12	Card Extender
EDAC Inc. 305-024-520-504	2	Copper Alloy	Semi Bellows	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	2	Dual	0.156 in	Flush Mount, Top Opening, Unthreaded	3.96 mm	Polyester Thermoplastic	Panel Mount, Through Hole	Solder	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	24	12
