W6280-4SG-P-528

Active

Conxall/Switchcraft

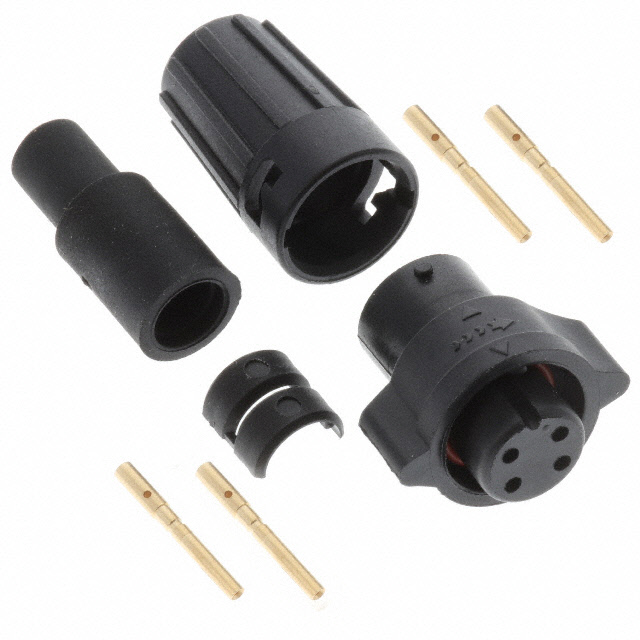

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	W6280-4SG-P-528	W6280-4 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [custom]	6.6 mm, 7.11 mm	6.6 - 7.11 mm
Cable Opening [custom]	0.28 in, 0.26 in	0.26 - 0.28 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	300 VAC	300 VAC

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Ingress Protection	Contact Finish - Mating	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Applications	Voltage Rating	Fastening Type	Current Rating (Amps)	Mounting Type	Contact Material	Insert Material	Backshell Material, Plating	Connector Type	Orientation	Color	Termination	Shielding	Features	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6280-4SG-P-3DC	IP66, IP67, IP68	Gold	Plastic	85 °C	-40 °C	4	Automotive, Communication Systems, Instrumentation	300 VAC	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	Copper Alloy	Thermoplastic	Thermoplastic	Female Sockets, Plug	Keyed	Black	Crimp	Unshielded	Backshell, Coupling Nut, UV Resistant
Conxall/Switchcraft W6280-4SG-P-528	IP66, IP67, IP68	Gold	Plastic	85 °C	-40 °C	4	Automotive, Communication Systems, Instrumentation	300 VAC	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	Copper Alloy	Thermoplastic	Thermoplastic	Female Sockets, Plug	Keyed	Black	Crimp	Unshielded	Backshell, Coupling Nut, UV Resistant	6.6 mm, 7.11 mm	0.26 in, 0.28 in
