P1172.473NLT
ActivePulse Electronics
FIXED IND 47UH 2.6A 89 MOHM SMD
P1172.473NLT
ActivePulse Electronics
FIXED IND 47UH 2.6A 89 MOHM SMD
Description
General part information
P1172.473NLT

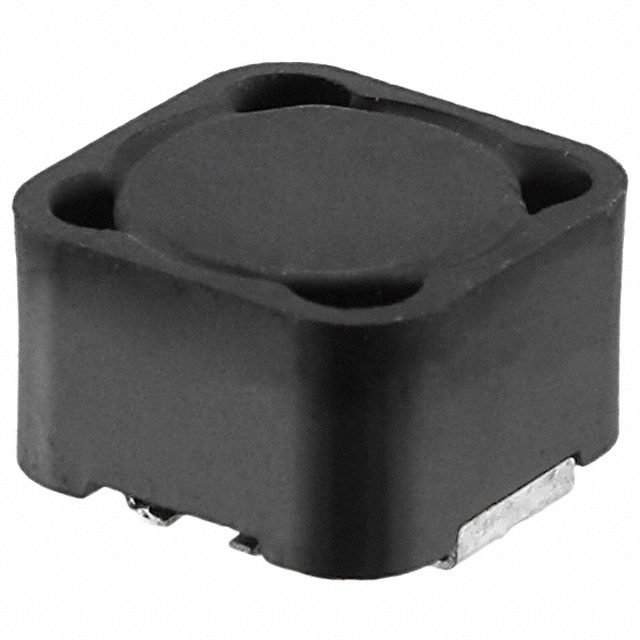

47 µH Shielded Wirewound Inductor 2.6 A 89mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | P1172.473NLT |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| Current Rating | 2.6 A |
| DC Resistance (DCR) (Max) | 89 mOhm |
| Frequency - Self Resonant | 7 MHz |
| Height - Seated (Max) | 0.315 in |
| Inductance | 47 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.482 in |
| Size / Dimension Width | 0.482 in |
| Tolerance | 20 % |
| Type | Wirewound |
