CP3001
ActiveCLIFF Electronic Components Ltd

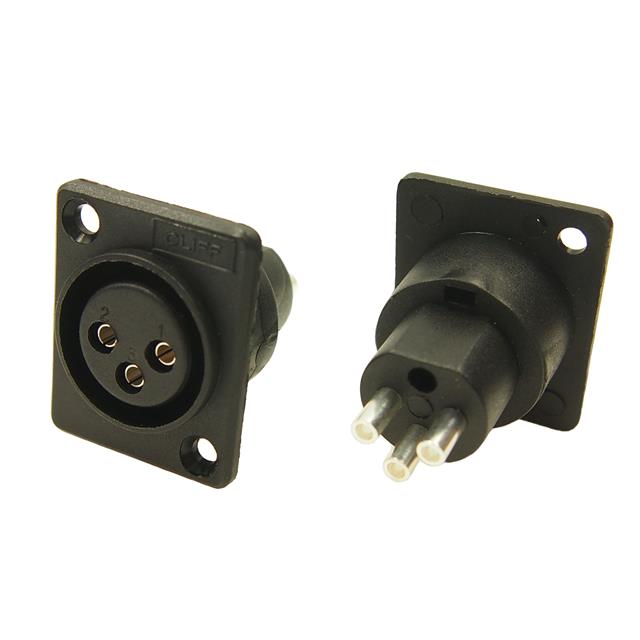

AUDIO CONN ACF (FEMALE)
CP3001
ActiveCLIFF Electronic Components Ltd
AUDIO CONN ACF (FEMALE)
Description
General part information
CP3001
3 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | CP3001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 196.9 µin |
| Contact Material | Brass |
| Current Rating | 5 A |
| Fastening Type | Push-Twist |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Orientation | Keyed |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | XLR |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 V |
