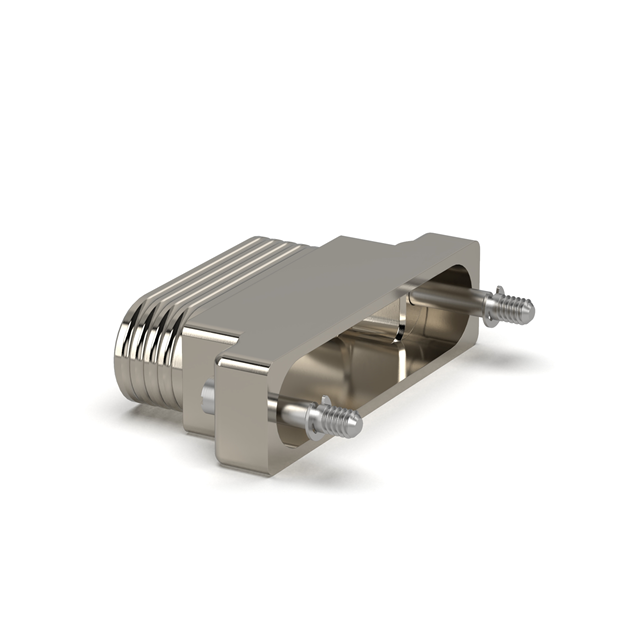

A97001-031

Active

Omnetics

MICRO-D 31POS BACKSHELL KIT

Search across all available documentation for this part.

Active

Omnetics

MICRO-D 31POS BACKSHELL KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

MICRO-D 25POS BACKSHELL KIT

Part	Color	Features	Cable Type	Shielding	Accessory Type	Compatible D-Sub Size	Cable Exit	Material	Plating	Compatible Shell Size	Primary Material	Number of Positions
Omnetics A97001-025	Silver	Mating Screws 2-56	Flat	Shielded	One Piece Backshell	25pos, HD44pos	180 °	Aluminum Alloy	Electroless Nickel	B	Metal
Omnetics A97001-021	Silver	Mating Screws 2-56	Flat	Shielded	One Piece Backshell		180 °	Aluminum Alloy	Electroless Nickel		Metal	21
Omnetics A97001-512	Silver	Mating Screws 2-56	Flat	Shielded	One Piece Backshell		180 °	Aluminum Alloy	Electroless Nickel		Metal	51
Omnetics A97001-031	Silver	Mating Screws 2-56	Flat	Shielded	One Piece Backshell		180 °	Aluminum Alloy	Electroless Nickel		Metal	31
Omnetics A97001-513	Silver	Mating Screws 2-56	Flat	Shielded	One Piece Backshell		180 °	Aluminum Alloy	Electroless Nickel		Metal	51
Omnetics A97001-037	Silver	Mating Screws 2-56	Flat	Shielded	One Piece Backshell	37pos, HD62pos	180 °	Aluminum Alloy	Electroless Nickel	C	Metal	37

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position One Piece Backshell Connector Silver 180° Shielded

Technical documentation and resources

No documents available
