1405260
ActivePhoenix Contact

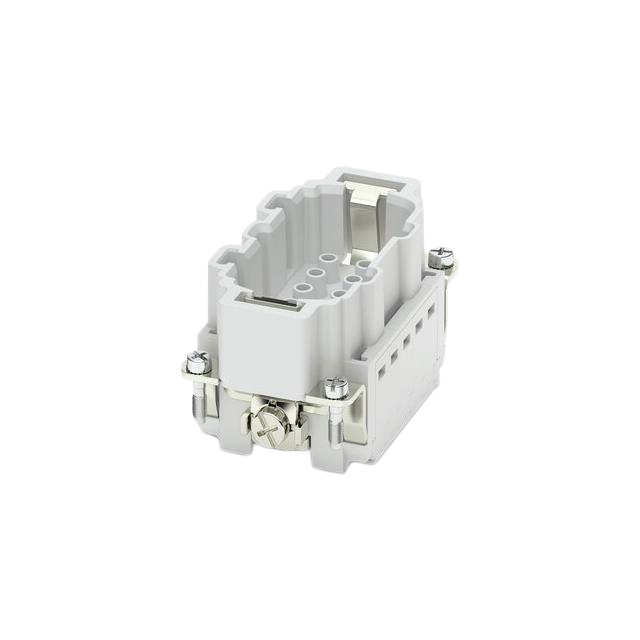

INSERT MALE 3+2POS+1GND CRIMP
1405260
ActivePhoenix Contact
INSERT MALE 3+2POS+1GND CRIMP
Description
General part information
1405260
Male Insert without Contacts 3+2+Ground Position Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 1405260 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CK 2.5-ED |
| Gender | Male |
| Housing Material | Nylon, Polyamide, PA |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | Ground, 2, 3 |
| Number of Positions | 0 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Size | B10 |
| Termination Style | Crimp |
