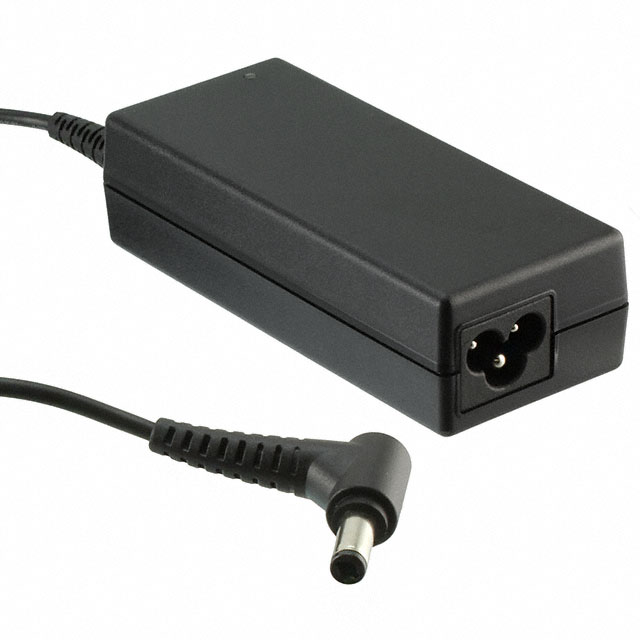

ADP-65JH HBAN

Obsolete

Delta Electronics

AC/DC DESKTOP ADAPTER 19V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ADP, MDS Series Level VI Datasheet~+3

ADP-65JH HBAN

Obsolete

Delta Electronics

AC/DC DESKTOP ADAPTER 19V 65W

Deep-Dive with AI

DocumentsDatasheet ADP, MDS Series Level VI Datasheet~+3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADP-65JH HBAN

Applications	ITE (Commercial)
Approval Agency	CE, CB, cULus
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	3.42 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C6
Input Type	Cord
No Load Power Consumption	210 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.5 mm, 5.5 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.25 in
Size / Dimension [x]	108 mm
Size / Dimension [y]	46 mm
Size / Dimension [y]	1.81 in
Size / Dimension [z]	29.5 mm
Size / Dimension [z]	1.16 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

ADP-65JH Series

AC/DC DESKTOP ADAPTER 19V 65W

Part	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length	Applications	Output Connector [diameter]	Output Connector	Output Connector [z]	Form	Polarization	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Input Connector	Region Utilized	Power (Watts)	Approval Agency	No Load Power Consumption	Voltage - Input [Min]	Voltage - Input [Max]	Input Type
Delta Electronics ADP-65JH HBAN	3.42 A	4.25 in	46 mm	29.5 mm	1.16 "	108 mm	1.81 in	70.9 in	1.8 m	ITE (Commercial)	2.5 mm, 5.5 mm	Barrel Plug R/A	11 mm	Desktop (Class I)	Positive Center	Level VI	40 °C	0 °C	19 V	IEC 320-C6	International	65 W	CB, CE, cULus	210 mW	90 VAC	264 VAC	Cord

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ADP-65JH Series

19V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
