PEN.3M.330.XLMT
ActiveLEMO

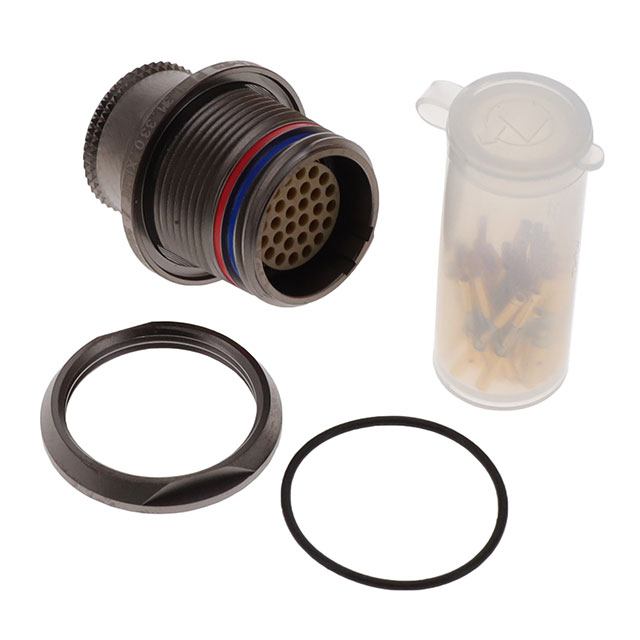

CONN RCPT FMALE 30POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PEN.3M.330.XLMT
ActiveLEMO
CONN RCPT FMALE 30POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PEN.3M.330.XLMT | PEN.3M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening [custom] | 0.591 in | 0.591 in |
| Cable Opening [custom] | 15 mm | 15 mm |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 3.5 A | 3.5 - 4 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 30 | 22 - 30 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 330 | 322 - 330 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
PEN.3M Series
CONN RCPT FMALE 30POS GOLD CRIMP
| Part | Ingress Protection | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Shell Material | Connector Type | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Cable Opening [custom] | Cable Opening [custom] | Orientation | Number of Positions | Shell Size - Insert | Mounting Feature | Current Rating (Amps) | Color | Insert Material | Primary Material | Contact Finish - Mating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PEN.3M.330.XLMT | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Shielded | Aluminum Alloy | Receptacle, Female Sockets | Bronze | 59 Áin | 1.5 Ám | Nickel | 0.591 in | 15 mm | N | 30 | 330 | Bulkhead - Front Side Nut | 3.5 A | Gray | Polyetheretherketone (PEEK) | Metal | Gold | Aerospace, Automotive, Aviation, Military |
LEMO PEN.3M.322.XLMT | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Shielded | Aluminum Alloy | Receptacle, Female Sockets | Bronze | 59 Áin | 1.5 Ám | Nickel | 0.591 in | 15 mm | N | 22 positions | 322 | Bulkhead - Front Side Nut | 4 A | Gray | Polyetheretherketone (PEEK) | Metal | Gold | Aerospace, Automotive, Aviation, Military |
LEMO PEN.3M.330.XLMM | IP68 - Dust Tight, Waterproof | Crimp | -55 °C | 200 °C | Shielded | Aluminum Alloy | Receptacle, Female Sockets | Bronze | 59 Áin | 1.5 Ám | Nickel | N | 30 | 330 | Bulkhead - Front Side Nut | 3.5 A | Gray | Polyetheretherketone (PEEK) | Metal | Gold | Aerospace, Automotive, Aviation, Military |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 139.21 | |
| 10 | $ 127.75 | |||
| 25 | $ 122.84 | |||
| 50 | $ 118.74 | |||
Description
General part information
PEN.3M Series
30 Position Circular Connector Receptacle, Female Sockets Crimp
