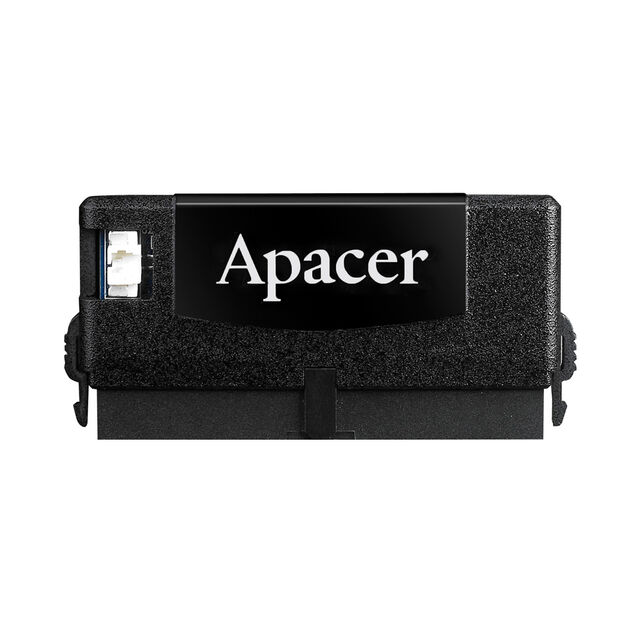

AP-FM0256D5605S-T1H

Active

Apacer Memory America

SSD 256MB DOM SLC ATA 5V

Search across all available documentation for this part.

Active

Apacer Memory America

SSD 256MB DOM SLC ATA 5V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.10

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 256MB ATA Disk-On-Module, ATA 5V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AP-FM0256D5605S-T1H	AP-FM0256 Series

Current - Max [Max]	125 mA	110 - 125 mA
Form Factor	ATA, Disk-On-Module	ATA, Disk-On-Module
Memory Size	256 MB	256 MB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Size / Dimension [x]	58.99 mm	45 - 58.99 mm
Size / Dimension [y]	27.83 mm	24.56 - 28.95 mm
Size / Dimension [z]	6.25 mm	5 - 6.25 mm
Speed - Read	20 MB/s	20 - 24 MB/s
Speed - Write	11 MB/s	11 MB/s
Type	ATA	ATA

SSD 256MB ATA DISK SLC ATA 5V

Part	Type	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Speed - Read	Form Factor	Speed - Write	Memory Type	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Apacer Memory America AP-FM0256D3005S-T	ATA	256 MB	70 °C	0 °C	24 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	110 mA
Apacer Memory America AP-FM0256D5605S-TW1M	ATA	256 MB	85 °C	-40 °C	20 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	125 mA	27.83 mm	6.25 mm	58.99 mm
Apacer Memory America AP-FM0256D2505S-TW1H	ATA	256 MB	85 °C	-40 °C	24 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	110 mA	27.1 mm	6 mm	49.39 mm
Apacer Memory America AP-FM0256D5605S-T1M	ATA	256 MB	70 °C	0 °C	20 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	125 mA	28.95 mm	6 mm	50.93 mm
Apacer Memory America AP-FM0256D5605S-T1H	ATA	256 MB	70 °C	0 °C	20 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	125 mA	27.83 mm	6.25 mm	58.99 mm
Apacer Memory America AP-FM0256D2505S-TW1M	ATA	256 MB	85 °C	-40 °C	24 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	110 mA	24.56 mm	5 mm	45 mm
Apacer Memory America AP-FM0256D3005S-TW	ATA	256 MB	85 °C	-40 °C	24 MB/s	ATA, Disk-On-Module	11 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	110 mA
