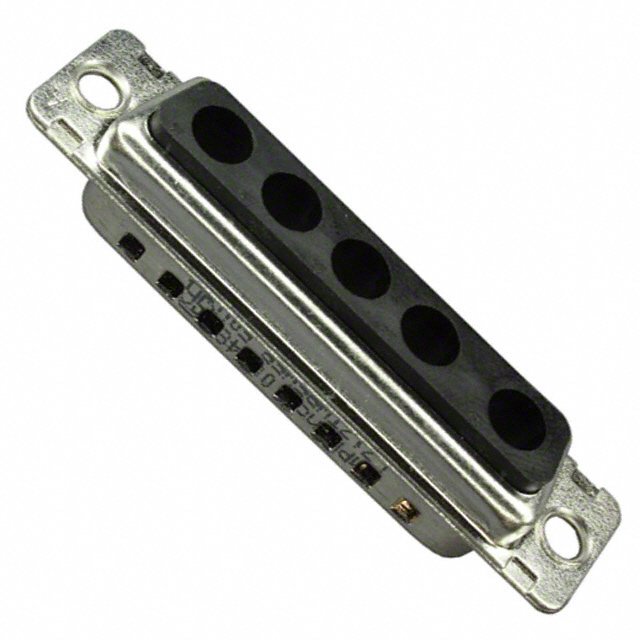

L717TWB5W5P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HOUSING PLUG 5POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717TWB5W5P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HOUSING PLUG 5POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717TWB5W5P

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Power
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	200
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	2.54 µm
Shell Finish Thickness	100 µin
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3

L717TWB5 Series

Part	Dielectric Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Style	Termination	Mounting Type	Voltage Rating	Features	Connector Type	Backset Spacing	Backset Spacing	Contact Finish	Number of Rows	Color	Flange Feature	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Contact Finish Thickness	Shell Finish Thickness	Shell Finish Thickness	Mating Cycles	Note
Amphenol ICC (Commercial Products) L717TWB5W5PMP2V3RRM6	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Right Angle Through Hole	300 VDC	Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	0.375 in	9.52 mm	Gold	1	Black	Board Side (M3)	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PP3YRM53	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Through Hole	300 VDC	Board Lock Grounding Indents	Male Pins Plug			Gold	1	Black	Board Side (M3)	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PP3Y4R	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Through Hole	300 VDC	Grounding Indents	Male Pins Plug			Gold	1	Black	4-40 Board Side	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PP2YRM84	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Through Hole	300 VDC	Board Lock Grounding Indents	Male Pins Plug			Gold	1	Black	Female Screwlock (4-40) Mating Side	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PEP3V	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Right Angle Through Hole	300 VDC	Grounding Indents	Male Pins Plug	0.845 in	21.46 mm	Gold	1	Black	Housing/Shell (Unthreaded)	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PA514	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub			300 VDC	Grounding Indents Guide Pin	Male Pins Plug			Gold	1	Black	Housing/Shell (Unthreaded)	Brass			5	Flash
Amphenol ICC (Commercial Products) L717TWB5W5PMP2V4FRM6	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Right Angle Through Hole	300 VDC	Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	0.375 in	9.52 mm	Gold	1	Black	Female Screwlock (4-40) Mating Side	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PP2YRM54	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Through Hole	300 VDC	Board Lock Grounding Indents	Male Pins Plug			Gold	1	Black	4-40 Board Side	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5PP2YRM53	Thermoplastic	Power	155 °C	-55 °C	5W5	3	Combo D-Sub	Solder	Panel Mount Through Hole	300 VDC	Board Lock Grounding Indents	Male Pins Plug			Gold	1	Black	Board Side (M3)	Brass	16 µin	0.41 µm	5
Amphenol ICC (Commercial Products) L717TWB5W5P	Thermoplastic Glass Filled	Power	155 °C	-55 °C	5W5	3	Combo D-Sub		Free Hanging (In-Line)		Grounding Indents	Plug for Male Contacts				1	Black	Housing/Shell (Unthreaded)				5		2.54 µm	100 µin	200	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.25
		10	$ 2.95
		25	$ 2.80
		50	$ 2.73
		100	$ 2.60
		250	$ 2.28
		500	$ 2.21
		1000	$ 1.89
		2500	$ 1.76

Description

General part information

L717TWB5 Series

Plug for Male Contacts Housing D-Sub, Combo Connector 5 (Power) Position
