Technical Specifications
Parameters and characteristics for this part
| Specification | AN-1319-A |
|---|---|
| Area (L x W) | 9.17 in² |
| Area (L x W) | 59.2 cm² |
| Color | Natural |
| Container Type | Box |
| Design | Cover Included |
| Features | PCB Supports, Watertight |
| Height [z] | 2.05 in |
| Height [z] | 52.07 mm |
| Material | Metal, Aluminum |
| Ratings | NEMA 12, IP68, NEMA 6P, NEMA 6, NEMA 13, NEMA 4X |
| Size / Dimension | 74.42 mm, 79.5 mm |
| Size / Dimension [x] | 3.13 " |
| Size / Dimension [y] | 2.93 in |
| Thickness | 1.8 mm |
| Thickness | 0.071 in |
| Weight | 0.5 lbs |
| Weight | 226.8 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

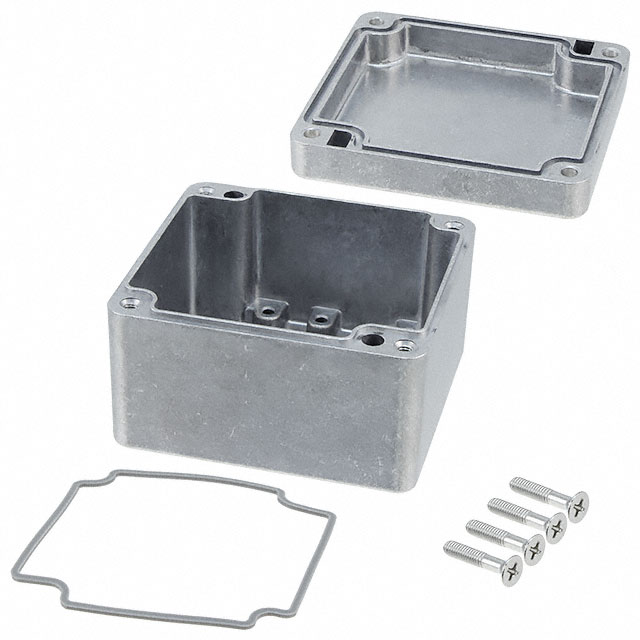

AN-1319-A
Box Metal, Aluminum Natural Cover Included 3.130" L x 2.930" W (79.50mm x 74.42mm) X 2.050" (52.07mm)
Documents
Technical documentation and resources
