FFP.2S.310.CLAC87

Active

LEMO

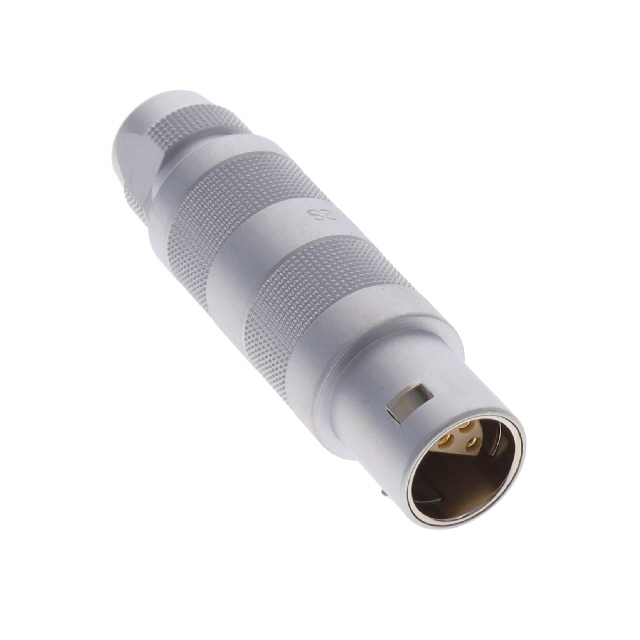

CONN CIRC PLUG 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFP.2S.310.CLAC87

Active

LEMO

CONN CIRC PLUG 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.88
		10	$ 65.04
		25	$ 62.54
		50	$ 60.45
		100	$ 57.12

Description

General part information

FFP.2S Series

10 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFP.2S.310.CLAC87	FFP.2S Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Acetal, Polyoxymethylene (POM)
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	8232A, 9222, RG-174, Belden 8215
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.098 - 0.126 in
Cable Opening	-	2.5 - 3.2 mm
Cable Opening	-	0.126 - 0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	4.2 mm
Cable Opening	-	10.5 mm
Cable Opening [Max] [diameter]	8.7 mm	6.2 - 8.7 mm
Cable Opening [Max] [diameter]	0.343 in	0.244 - 0.413 in
Cable Opening [Min] [diameter]	8.2 mm	5.2 - 9.5 mm
Cable Opening [Min] [diameter]	0.323 in	0.205 - 0.374 in
Center Contact Material	-	Brass
Center Contact Plating	-	Gold
Color	Silver	Silver, Black
Connector Style	-	Triaxial
Connector Type	Male Pins, Plug, Female Sockets	Male Pins, Plug, Female Sockets, Insert, Male Pin, Insert Shell
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	7 A	7 - 20 A
Dielectric Material	-	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell, Insert Only, Requires Shell
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included; Insert Not Included
Number of Ports	-	1
Number of Positions	10	2 - 10
Operating Temperature [Max]	250 °C	115 - 250 °C
Operating Temperature [Min]	-55 °C	-55 - -50 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal, Plastic
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass, Polyoxymethylene (POM), Acetal
Shell Size - Insert	310	302 - 310
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

FFP.2S Series

CONN CIRC PLUG 5P GOLD SLDR CUP

Part	Ingress Protection	Shielding	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Backshell Material, Plating	Primary Material	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shell Material	Mounting Type	Contact Material	Material Flammability Rating	Features	Shell Finish	Fastening Type	Connector Type	Contact Finish - Mating	Orientation	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
LEMO FFP.2S.305.CLAC62	IP50	Shielded	Silver	13 A	-55 °C	250 °C	305	Brass, Chrome	Metal	Polyetheretherketone (PEEK)	6.2 mm	5.2 mm	0.205 in	0.244 in	Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed
LEMO FFP.2S.306.ZLA	IP50	Shielded		12 A	-55 °C	250 °C	306			Polyetheretherketone (PEEK)							Brass, Bronze	UL94 V-0	Insert Only, Requires Shell			Female Sockets, Insert, Male Pins	Gold	Keyed	6
LEMO FFP.2S.307.CLAC72	IP50	Shielded	Silver	9 A, 12 A	-55 °C	250 °C	307	Brass, Chrome	Metal	Polyetheretherketone (PEEK)					Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	7	0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FFP.2S.307.CLAC82	IP50	Shielded	Silver	9 A, 12 A	-55 °C	250 °C	307	Brass, Chrome	Metal	Polyetheretherketone (PEEK)	8.2 mm	7.2 mm	0.283 in	0.323 in	Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	7
LEMO FFP.2S.304.BLAL62Z	IP50	Shielded	Black	15 A	-50 °C	115 °C	304	Acetal, Polyoxymethylene (POM)	Plastic	Polyetheretherketone (PEEK)	6.2 mm	5.2 mm	0.205 in	0.244 in	Acetal, Polyoxymethylene (POM)	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell		Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	4
LEMO FFP.2S.310.CLAC67Z	IP50	Shielded	Silver	7 A	-55 °C	250 °C	310	Brass, Chrome	Metal	Polyetheretherketone (PEEK)					Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	10	0.26 in	6.6 mm
LEMO FFP.2S.151.LN
LEMO FFP.2S.302.CLAC72	IP50	Shielded	Silver	20 A	-55 °C	250 °C	302	Brass, Chrome	Metal	Polyetheretherketone (PEEK)					Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	2	0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FFP.2S.310.CLAC52	IP50	Shielded	Silver	7 A	-55 °C	250 °C	310	Brass, Chrome	Metal	Polyetheretherketone (PEEK)					Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	10			0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FFP.2S.306.CLAC52Z	IP50	Shielded	Silver	12 A	-55 °C	250 °C	306	Brass, Chrome	Metal	Polyetheretherketone (PEEK)					Brass	Free Hanging (In-Line)	Brass, Bronze	UL94 V-0	Backshell	Chrome	Push-Pull	Female Sockets, Male Pins, Plug	Gold	Keyed	6			0.165 in, 0.205 in	4.2 mm	5.2 mm
