Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CCPL2H135150-X | CCPL2H Series |
|---|---|---|
| Color | Black | Black |
| Height [z] | 6.34 in | 2.2 - 6.97 in |
| Height [z] | 161.04 mm | 55.88 - 177.04 mm |
| Length | - | 141.22 - 195.33 mm |
| Length | - | 6.64 - 7.69 in |
| Length [x] | 211.07 mm | 103.38 - 226.57 mm |
| Length [x] | 8.31 in | 4.07 - 8.92 in |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width | - | 44.7 - 58.17 mm |
| Width | - | 1.76 - 2.29 " |
| Width [y] | 55.63 mm | 43.94 - 55.63 mm |
| Width [y] | 2.19 in | 1.73 - 2.19 " |
CCPL2H Series
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, POLYMER, 2-HOLE CONFIGURATI
| Part | Color | Length [x] | Length | Type Attributes | Type | Width [y] | Width [y] | Height [z] | Height [z] | Width [x] | Width [x] | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCPL2H8397-X | Black | 6.13 in | 155.7 mm | Adjustable | Clamp, Cleat | 1.95 " | 49.53 mm | 100.08 mm | 3.94 in | ||||
Panduit Corp CCPL2H7083-X | Black | 5.56 " | 141.22 mm | Adjustable | Clamp, Cleat | 90.93 mm | 3.58 " | 46.99 mm | 1.85 " | ||||
Panduit Corp CCPL2H150165-X | Black | 8.92 " | Adjustable | Clamp, Cleat | 177.04 mm | 6.97 in | 58.17 mm | 2.29 " | 226.57 mm | ||||
Panduit Corp CCPL2H109120-X | Black | 180.34 mm | Adjustable | Clamp, Cleat | 2.07 in | 52.58 mm | 133.1 mm | 5.24 in | 7.1 in | ||||
Panduit Corp CCPL2H97109-X | Black | 168.66 mm | Adjustable | Clamp, Cleat | 119.89 mm | 4.72 in | 52.32 mm | 2.06 in | 6.64 in | ||||
Panduit Corp CCPL2H120135-X | Black | 195.33 mm | Adjustable | Clamp, Cleat | 145.03 mm | 5.71 in | 55.12 mm | 2.17 " | 7.69 in | ||||
Panduit Corp CCPL2H3846-X | Black | 4.07 in | Adjustable | Clamp, Cleat | 1.73 in | 43.94 mm | 55.88 mm | 2.2 in | 103.38 mm | ||||
Panduit Corp CCPL2H135150-X | Black | 8.31 in | Adjustable | Clamp, Cleat | 2.19 in | 55.63 mm | 161.04 mm | 6.34 in | 211.07 mm | ||||
Panduit Corp CCPL2H5870-X | Black | 5.03 in | Adjustable | Clamp, Cleat | 77.98 mm | 3.07 in | 44.7 mm | 1.76 in | 127.76 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

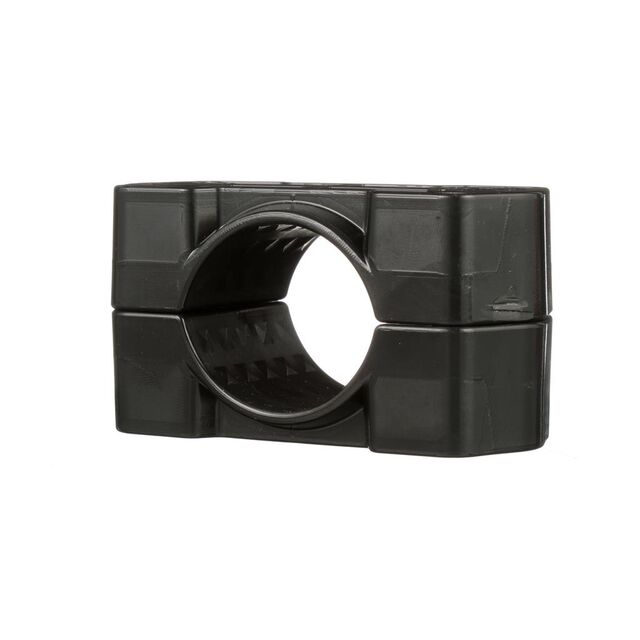

CCPL2H Series
Cable Clamp, Cleat Black
