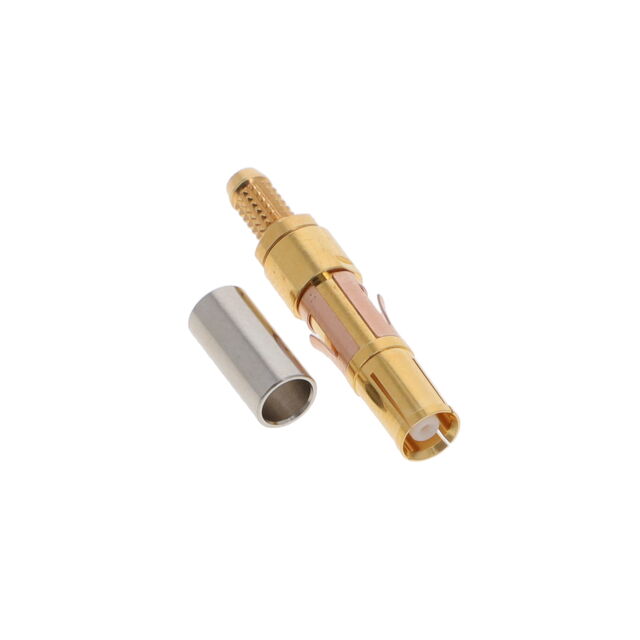

PSS.2B.250.ZTME30
ActiveLEMO
CONN SOCKET CONTACT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSS.2B.250.ZTME30
ActiveLEMO
CONN SOCKET CONTACT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PSS.2B.250.ZTME30 | PSS.2B Series |
|---|---|---|
| Body Finish | - | Gold |
| Body Material | - | Brass |
| Center Contact Material | - | Brass |
| Center Contact Plating | - | Gold |
| Connector Style | - | Coaxial |
| Connector Type | - | Male Pin, Plug |
| Contact Termination | - | Solder |
| Dielectric Material | - | Polyetheretherketone (PEEK) |
| Fastening Type | - | Push-Pull |
| Housing Color | - | Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector |
| Ingress Protection | - | IP50 |
| Mating Cycles | - | 5000 |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Number of Ports | - | 1 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 250 °C |
| Pin or Socket | Socket | Socket |
| Shield Termination | - | Solder |
PSS.2B Series
CONN COAX PLUG STR 50 OHM SOLDER
| Part | Mating Cycles | Dielectric Material | Number of Ports | Shield Termination | Body Finish | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Includes | Connector Type | Mounting Feature | Contact Termination | Impedance | Center Contact Material | Fastening Type | Center Contact Plating | Housing Color | Body Material | Pin or Socket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5000 | Polyetheretherketone (PEEK) | 1 | Solder | Gold | Coaxial | -55 °C | 250 °C | IP50 | 1 Connector, 1 Nut | Male Pin, Plug | Bulkhead - Rear Side Nut | Solder | 50 Ohms | Brass | Push-Pull | Gold | Gold | Brass | ||
5000 | Polyetheretherketone (PEEK) | 1 | Solder | Gold | Coaxial | -55 °C | 250 °C | IP50 | 1 Connector, 1 Nut | Male Pin, Plug | Bulkhead - Rear Side Nut | Solder | 50 Ohms | Brass | Push-Pull | Gold | Gold | Brass | ||
50 Ohms | Socket | |||||||||||||||||||
50 Ohms | Socket | |||||||||||||||||||
50 Ohms | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 25.88 | |
| 10 | $ 22.66 | |||
| 25 | $ 21.68 | |||
| 50 | $ 20.98 | |||
| 100 | $ 20.28 | |||
| 250 | $ 19.16 | |||
| 500 | $ 18.60 | |||
Description
General part information
PSS.2B Series
Socket Contact Coax
