RG402-SM-SM(QTY:25cm)
ActiveMcGill Microwave Systems
RG402 CABLE ASSY 25 CM SMA MALE
RG402-SM-SM(QTY:25cm)
ActiveMcGill Microwave Systems
RG402 CABLE ASSY 25 CM SMA MALE
Description
General part information
RG402-SM-SM(QTY:25cm)

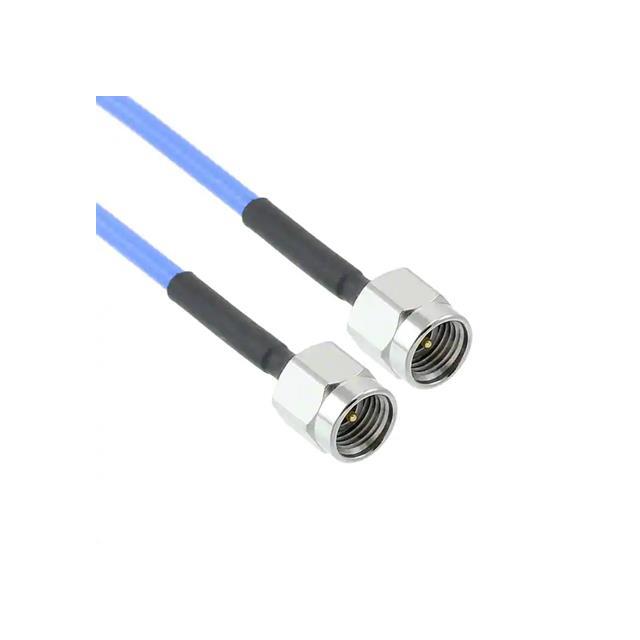

Cable Assembly Coaxial SMA to SMA RG-402 9.873" (250.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | RG402-SM-SM(QTY:25cm) |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 402 |
| Color | Blue |
| Frequency - Max | 6000 MHz |
| Length | 9.873 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Style | SMA |
