031-71016-RFX

Active

Amphenol RF

CONN BNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-71016-RFX

Active

Amphenol RF

CONN BNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-71016-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms

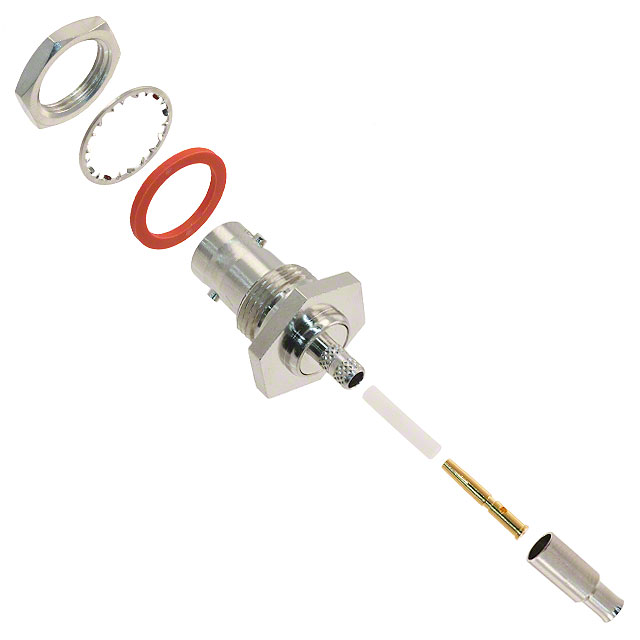

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Contact, 1 Lockwasher, 1 Insulator, 1 Ferrule
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

031-71 Series

Part	Mounting Type	Mating Cycles	Fastening Type	Voltage Rating	Frequency - Max [Max]	Body Material	Connector Type	Center Contact Material	Dielectric Material	Impedance	Features	Housing Color	Connector Style	Mounting Feature	Contact Termination	Shield Termination	Insertion Loss	Number of Ports	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Includes	Cable Group
Amphenol RF 031-71047	Panel Mount Right Angle Through Hole	500	Bayonet Lock	500 V	1 GHz	Zinc Die Cast	Female Socket Jack	Phosphor Bronze	Polypropylene (PP)	75 Ohms	Board Guide Isolated	Silver White	BNC	Bulkhead - Front Side Nut	Solder	Solder	0.2 dB	1	Gold	85 °C	-55 °C	Nickel
Amphenol RF 031-71064	Free Hanging (In-Line)	500	Bayonet Lock	500 V	4 GHz	Brass	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	75 Ohms		Silver	BNC		Crimp Solder	Crimp	0.2 dB	1	Gold	165 °C	-65 ░C	Nickel	1 Connector 1 Contact 1 Ferrule	143 212 54 6A 89248 9290 Belden 1152A RG-6
Amphenol RF 031-71045-1010	Panel Mount Through Hole	500	Bayonet Lock	500 V	1 GHz	Zinc Die Cast	Female Socket Jack	Phosphor Bronze	Polypropylene (PP)	75 Ohms		Silver	BNC	Bulkhead - Front Side Nut	Solder	Solder	0.2 dB	1	Gold	85 °C	-55 °C	Nickel
Amphenol RF 031-71046	Panel Mount Right Angle Through Hole	500	Bayonet Lock	500 V	1 GHz	Zinc Die Cast	Female Socket Jack	Phosphor Bronze	Polypropylene (PP)	75 Ohms	Board Guide Isolated	Black Silver	BNC	Bulkhead - Front Side Nut	Solder	Solder	0.2 dB	1	Gold	85 °C	-55 °C	Nickel
Amphenol RF 031-71014-RFX	Free Hanging (In-Line)	500	Bayonet Lock	500 V		Brass	Female Socket Jack	Phosphor Bronze	Polyoxymethylene (POM) Acetal	75 Ohms		Silver	BNC		Solder	Crimp	0.2 dB	1	Gold	80 C	-40 °C	Nickel	1 Connector 1 Contact 1 Ferrule 1 Sleeve	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179
Amphenol RF 031-71059	Panel Mount Through Hole	500	Bayonet Lock	500 V	1 GHz	Zinc Die Cast	Female Socket Jack	Phosphor Bronze	Polypropylene (PP)	75 Ohms	Board Guide Isolated	Black Silver	BNC	Bulkhead - Front Side Nut	Solder	Solder	0.2 dB	1	Gold	85 °C	-55 °C	Nickel
Amphenol RF 031-71000-RFX	Free Hanging (In-Line)	500	Bayonet Lock	500 V	2 GHz	Brass	Male Pin Plug	Brass	Polyoxymethylene (POM) Acetal	75 Ohms		Silver	BNC		Crimp	Crimp	0.2 dB	1	Gold	85 °C	-40 °C	Nickel	1 Connector 1 Contact 1 Ferrule	1694A 9248 Belden 1694 RG-6
Amphenol RF 031-71052-1010	Panel Mount Right Angle Through Hole	500	Bayonet Lock	500 V	1 GHz	Zinc Die Cast	Female Socket Jack	Phosphor Bronze	Polypropylene (PP)	75 Ohms	Board Lock Isolated	Silver White	BNC	Bulkhead - Front Side Nut	Solder	Solder	0.2 dB	1	Gold	85 °C	-55 °C	Nickel
Amphenol RF 031-71009-RFX	Free Hanging (In-Line)	500	Bayonet Lock	500 V	4 GHz	Brass	Female Socket Jack	Phosphor Bronze	Polyoxymethylene (POM) Acetal	75 Ohms		Silver	BNC		Crimp	Crimp	0.2 dB	1	Gold	165 °C	-65 ░C	Nickel	1 Connector 1 Contact 1 Ferrule	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59
Amphenol RF 031-71010-RFX	Free Hanging (In-Line) Right Angle	500	Bayonet Lock	500 V	2 GHz	Brass	Male Pin Plug	Brass	Polyoxymethylene (POM) Acetal	75 Ohms		Silver	BNC		Crimp	Crimp	0.2 dB	1	Gold	155 °C	-40 °C	Nickel	1 Connector 1 Contact 1 Ferrule	82108 9104 Belden 1506 RG-59 Plenum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.90
		10	$ 7.14
		25	$ 6.74
		50	$ 6.58
		100	$ 6.25
		300	$ 5.59
		500	$ 5.26
		1000	$ 4.61

Description

General part information

031-71 Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
