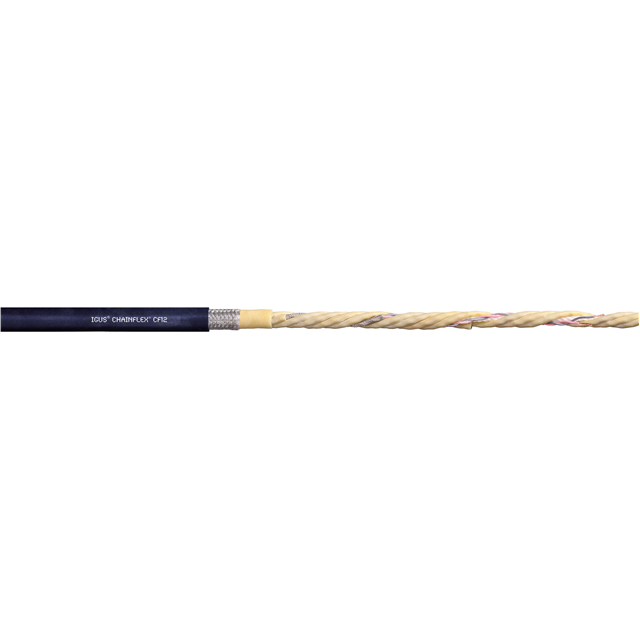

CF12-05-03-02
ActiveIgus
MULTI-PAIR 6COND 20AWG BLUE FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF12-05-03-02
ActiveIgus
MULTI-PAIR 6COND 20AWG BLUE FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CF12-05-03-02 | CF12 Series |
|---|---|---|
| Cable Type | Multi-Pair | Multi-Pair, Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Features | Oil Resistant, Abrasion Resistant | Oil Resistant, Abrasion Resistant |
| Jacket (Insulation) Diameter [diameter] | 13.49 mm | 11 - 22.5 mm |
| Jacket (Insulation) Diameter [diameter] | 0.531 in | 0.433 - 0.886 in |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) | Thermoplastic Elastomer (TPE) |
| Jacket Color | Blue | Blue |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Number of Conductors | 6 | 2 - 16 |
| Shield Coverage | 90 % | 90 % |
| Shield Material | Steel, Galvanized | Steel, Galvanized |
| Shield Type | Braid | Braid |
| Usage | Industrial, Data | Industrial, Data |
| Voltage | 300 V | 300 V |
| Wire Gauge | 20 AWG | 17 - 24 AWG |
CF12 Series
MULTI-PAIR 12COND 17AWG BLU FEET
| Part | Conductor Material | Features | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Shield Type | Shield Material | Jacket Color | Jacket (Insulation) Material | Wire Gauge | Number of Conductors | Conductor Insulation | Usage | Voltage | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Igus CF12-10-06-02 | Copper, Bare | Abrasion Resistant, Oil Resistant | Multi-Pair | 0.787 in | 19.99 mm | 90 % | Braid | Steel, Galvanized | Blue | Thermoplastic Elastomer (TPE) | 17 AWG | 12 | Thermoplastic Elastomer (TPE) | Data, Industrial | 300 V | Enter Number of Feet in Order Quantity |
Igus CF12-05-03-02 | Copper, Bare | Abrasion Resistant, Oil Resistant | Multi-Pair | 0.531 in | 13.49 mm | 90 % | Braid | Steel, Galvanized | Blue | Thermoplastic Elastomer (TPE) | 20 AWG | 6 | Thermoplastic Elastomer (TPE) | Data, Industrial | 300 V | Enter Number of Feet in Order Quantity |
Igus CF12-05-08-02 | Copper, Bare | Abrasion Resistant, Oil Resistant | Multi-Pair | 90 % | Braid | Steel, Galvanized | Blue | Thermoplastic Elastomer (TPE) | 20 AWG | 16 | Thermoplastic Elastomer (TPE) | Data, Industrial | 300 V | Enter Number of Feet in Order Quantity | ||
Igus CF12-02-02-02 | Copper, Bare | Abrasion Resistant, Oil Resistant | Multi-Conductor | 0.433 in | 11 mm | 90 % | Braid | Steel, Galvanized | Blue | Thermoplastic Elastomer (TPE) | 24 AWG | 2 | Thermoplastic Elastomer (TPE) | Data, Industrial | 300 V | Enter Number of Feet in Order Quantity |
Igus CF12-05-14-02 | Copper, Bare | Abrasion Resistant, Oil Resistant | Multi-Pair | 0.886 in | 22.5 mm | 90 % | Braid | Steel, Galvanized | Blue | Thermoplastic Elastomer (TPE) | 20 AWG | 14 | Thermoplastic Elastomer (TPE) | Data, Industrial | 300 V | Enter Number of Feet in Order Quantity |
Igus CF12-05-05-02 | Copper, Bare | Abrasion Resistant, Oil Resistant | Multi-Pair | 0.61 " | 15.49 mm | 90 % | Braid | Steel, Galvanized | Blue | Thermoplastic Elastomer (TPE) | 20 AWG | 10 | Thermoplastic Elastomer (TPE) | Data, Industrial | 300 V | Enter Number of Feet in Order Quantity |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.28 | |
| 100 | $ 10.82 | |||
| 500 | $ 10.40 | |||
| 1000 | $ 9.08 | |||
Description
General part information
CF12 Series
6 (3 Pair Twisted) Conductor Multi-Pair Cable Blue 20 AWG Braid Enter Number of Feet in Order Quantity
