Description
General part information

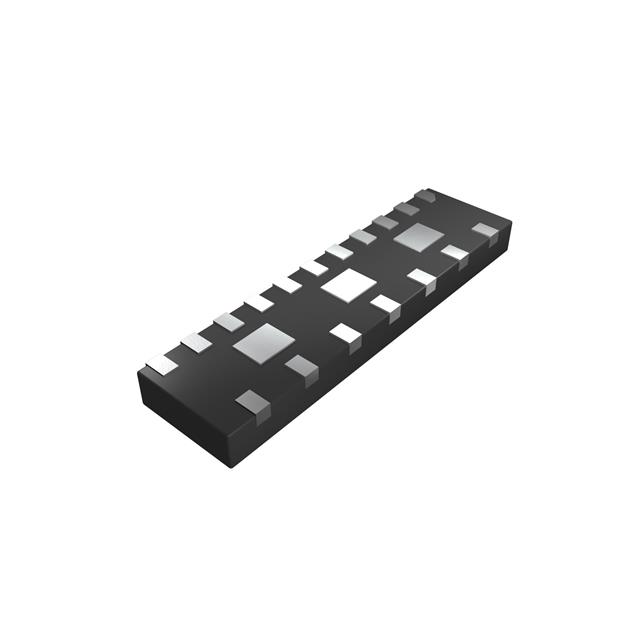

AZ1083-08F
16.5V (Typ) Clamp Ipp Tvs Diode Surface Mount DFN5515P18E
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ1083-08F |
|---|---|
| Bidirectional Channels | 8 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 18-UFDFN Exposed Pad |
| Package Name | DFN5515P18E |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 4.5 V |
| Voltage - Clamping (Max) (Typ) | 16.5 V |
| Voltage - Reverse Standoff (Max) | 3.3 V |
