DS1249AB-100

Active

Analog Devices Inc./Maxim Integrated

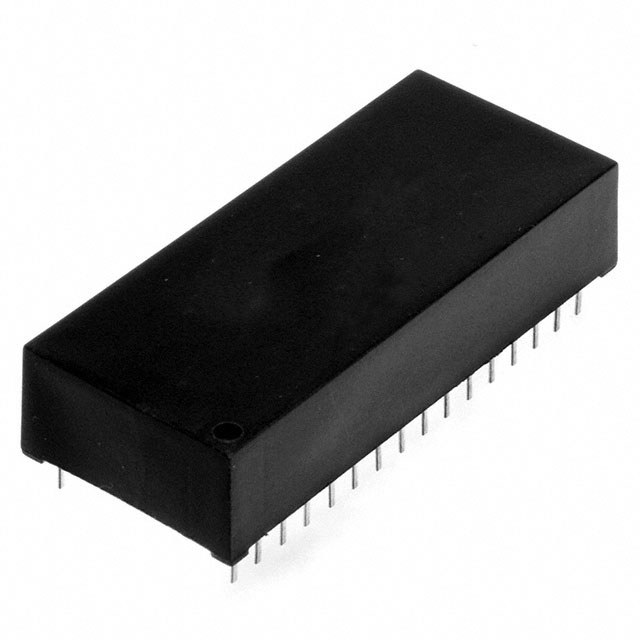

IC NVSRAM 2MBIT PARALLEL 32EDIP

Deep-Dive with AI

Search across all available documentation for this part.

DS1249AB-100

Active

Analog Devices Inc./Maxim Integrated

IC NVSRAM 2MBIT PARALLEL 32EDIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DS1249AB-100	DS1249AB Series

Access Time	100 ns	70 - 100 ns
Memory Format	NVSRAM	NVSRAM
Memory Interface	Parallel	Parallel
Memory Organization [custom]	256 K	256 K
Memory Organization [custom]	8	8
Memory Size	2 Gbit	2 Gbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	0.6 in	0.6 in
Package / Case	15.24 mm	15.24 mm
Package / Case	32-DIP Module	32-DIP Module
Supplier Device Package	32-EDIP	32-EDIP
Technology	NVSRAM (Non-Volatile SRAM)	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	5.25 V	5.25 V
Voltage - Supply [Min]	4.75 V	4.75 V
Write Cycle Time - Word, Page	-	85 ns
Write Cycle Time - Word, Page [custom]	100 ns	100 ns
Write Cycle Time - Word, Page [custom]	100 ns	100 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DS1249AB Series

IC NVSRAM 2MBIT PARALLEL 32EDIP

Part	Memory Type	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Package / Case	Technology	Memory Interface	Memory Organization [custom]	Memory Organization [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Access Time	Memory Size	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page
Analog Devices Inc./Maxim Integrated DS1249AB-100	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	70 °C	0 °C	100 ns	2 Gbit	100 ns	100 ns
Analog Devices Inc./Maxim Integrated DS1249AB-85IND	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	85 °C	-40 °C	85 ns	2 Gbit			85 ns
Analog Devices Inc./Maxim Integrated DS1249AB-85	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	70 °C	0 °C	85 ns	2 Gbit			85 ns
Analog Devices Inc./Maxim Integrated DS1249AB-70IND#	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	85 °C	-40 °C	70 ns	2 Gbit
Analog Devices Inc./Maxim Integrated DS1249AB-70IND	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	85 °C	-40 °C	70 ns	2 Gbit
Analog Devices Inc./Maxim Integrated DS1249AB-70	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	70 °C	0 °C	70 ns	2 Gbit
Analog Devices Inc./Maxim Integrated DS1249AB-70#	Non-Volatile	Through Hole	32-EDIP	0.6 in	15.24 mm	32-DIP Module	NVSRAM (Non-Volatile SRAM)	Parallel	256 K	8	4.75 V	5.25 V	NVSRAM	70 °C	0 °C	70 ns	2 Gbit

Description

General part information

DS1249AB Series

NVSRAM (Non-Volatile SRAM) Memory IC 2Mbit Parallel 100 ns 32-EDIP

Documents

Technical documentation and resources

No documents available
